Technical Specifications
| Main Configuration | 1.0mm one-piece stamped steel surface, PP head/footboards, Aluminum side rails |
|---|---|
| System & Safety Features | Jieshun 2-function motor, Red button quick-fold rails, Locking device |
| Adjustment Range | Back: 0-75°±5°, Knee: 0-45°±5° (Fixed Height: 500mm) |
| Dimensions & Capacity | Overall Size: 2120×980×500mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 40×80×1.0mm steel frame, 5-inch silent dual wheels with 4 brakes |

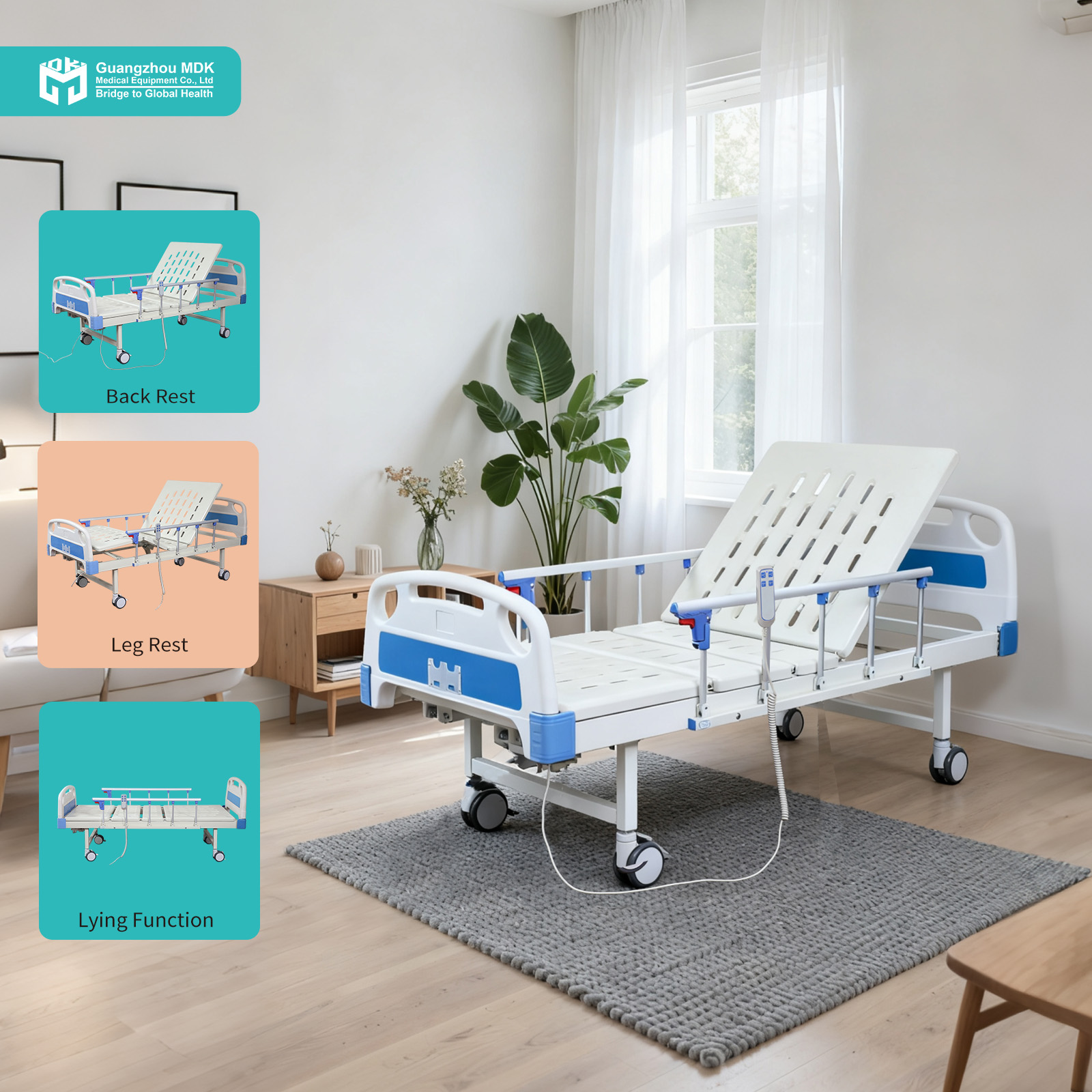

Upgraded Durability for Standard Wards
Designed to withstand the continuous demands of high-traffic hospitals and clinics, this electric 2-function bed offers a significant upgrade in structural integrity. The core foundation combines a reinforced 40×80×1.0mm steel pipe frame with a 1.0mm thick one-piece stamped carbon steel surface. This heavy-duty construction completely eliminates the risk of deformation over time, safely accommodating a maximum load of 240kg and providing exceptional long-term value.
Efficient Postural Adjustments
Equipped with a whisper-quiet Jieshun motor system, caregivers can easily manage essential patient positioning with a simple remote control. Instantly elevate the backrest up to 75° for feeding or respiratory support, and raise the knee rest up to 45° to enhance patient blood circulation. The bed’s fixed height of 500mm provides a highly stable and accessible platform for both patients and nursing staff.

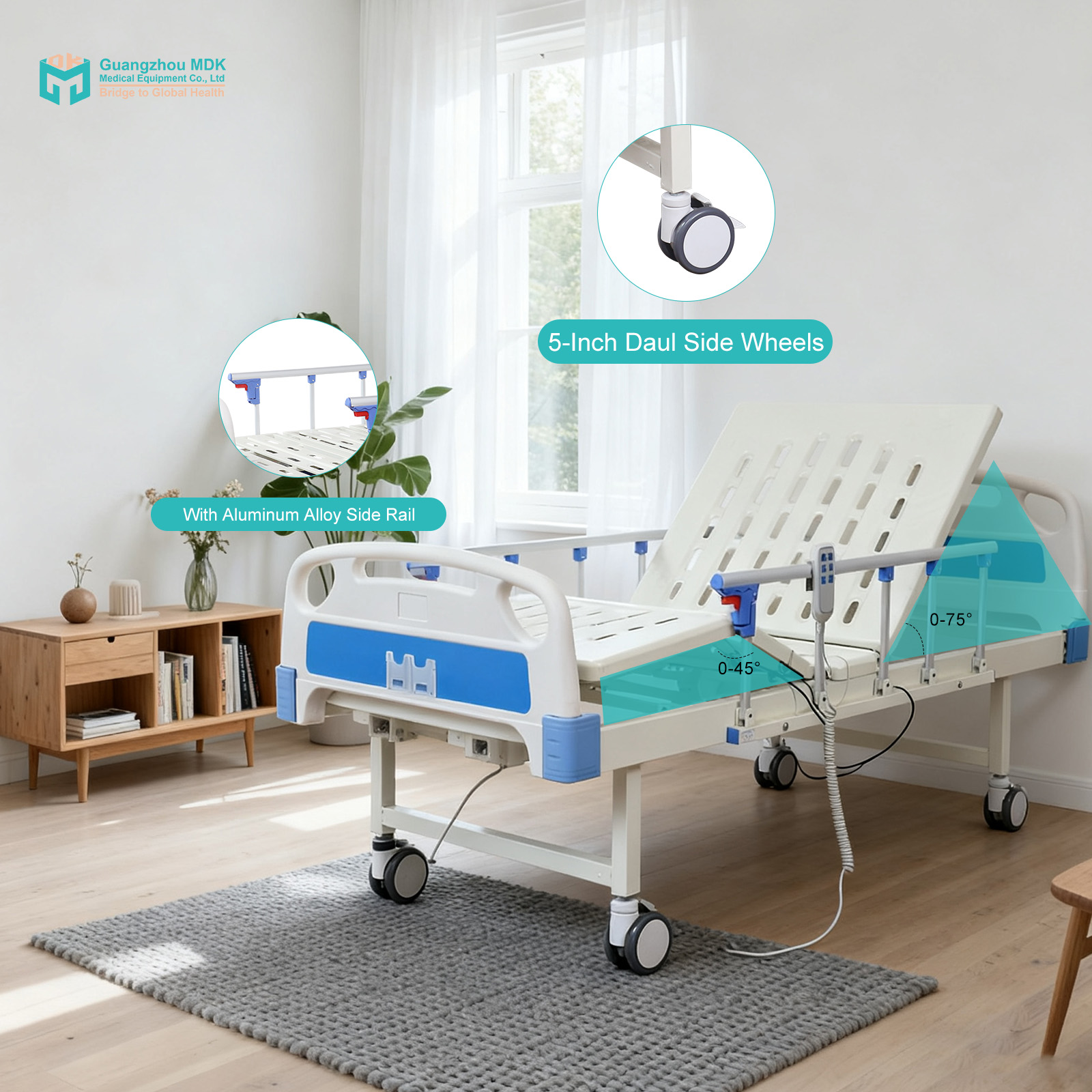

Practical Safety Mechanisms
Safety is intuitively integrated into every component. The bed features sturdy 5-leg aluminum alloy side rails (≥350mm height, ≥1170mm length) that lock tightly to prevent accidental falls. When caregivers need unhindered access, the rails fold down smoothly using a highly visible red release button. Additionally, the premium 5-inch silent dual wheels are equipped with four independent brakes, ensuring the bed remains securely anchored during treatments or patient transfers.
