Technical Specifications
| Main Configuration | Strip PP bed board, blow-molded head/electronic foot board, electric PP guardrails |
|---|---|
| System & Safety Features | Jieshun 4-motor system, Weighing scale, Electric CPR, Backup battery, 5-inch side-brake castors |
| Adjustment Range | Height: 450-770mm, Backrest: 71°±2°, Leg: 52°±2°, Trendelenburg/Reverse: 12°±2° |
| Dimensions & Capacity | Overall: 2205×1090×870mm, Bed Surface: 1925×900mm, Max Load: ≥240 KG |
| Packaging Details | Size: 2130×1090×520mm / 1.2cbm, Net Weight: 124 KG, Gross Weight: 135 KG |

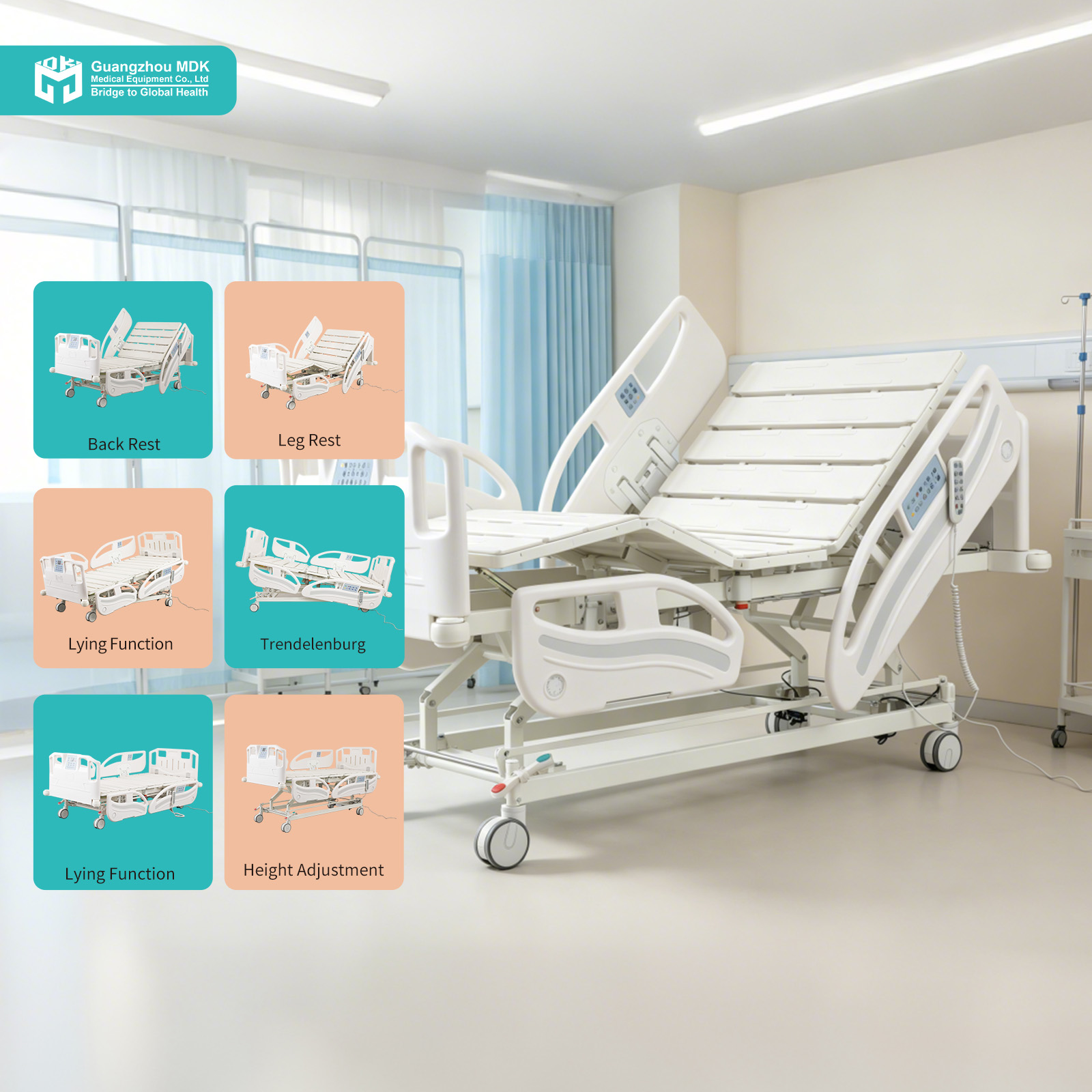

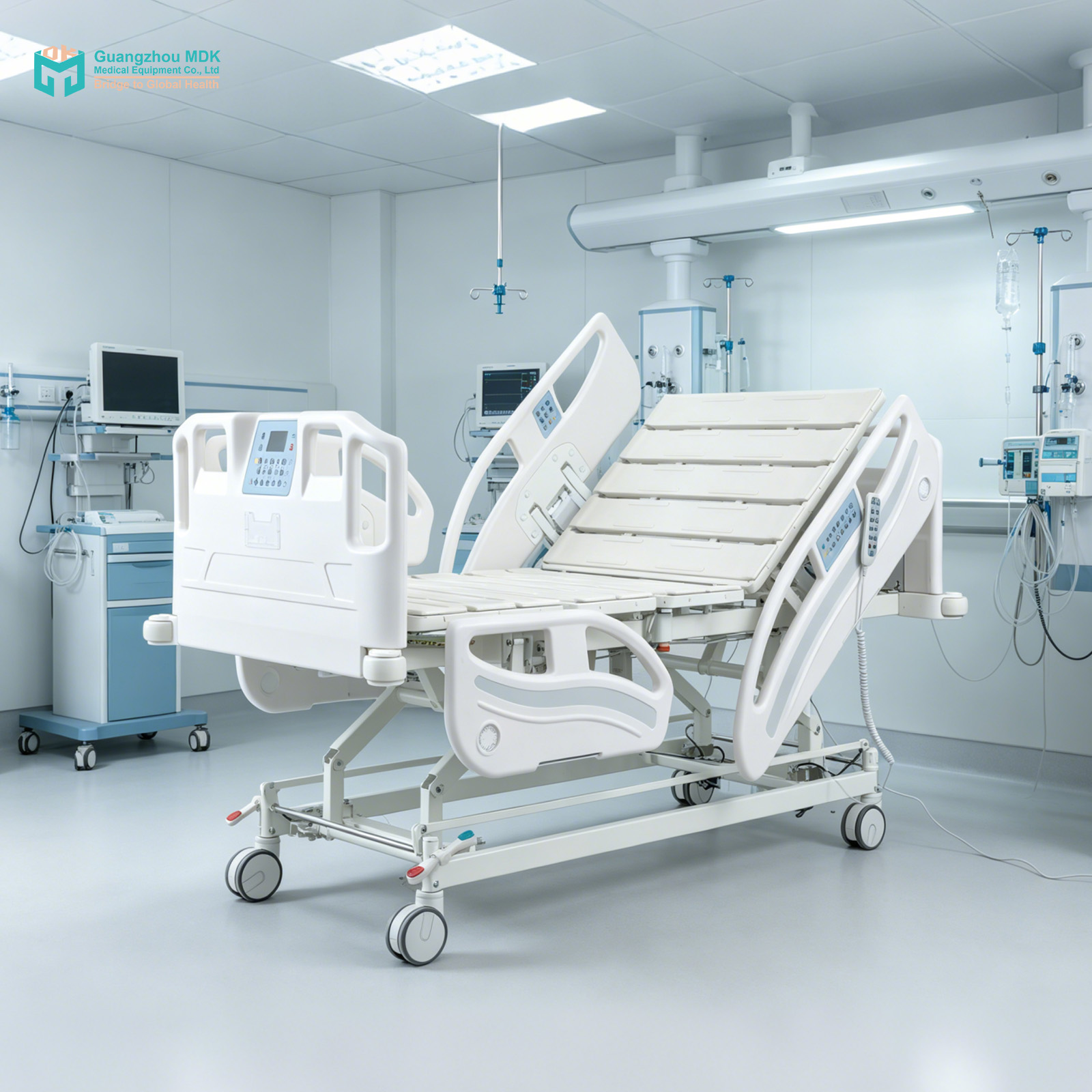

Elevate Intensive Care with the Advanced 5-Function Electric Bed
Engineered for modern critical care units, this premium 5-function electric hospital bed combines structural durability with smart technology. The foundation is a robust 30×60×1.5mm national standard steel frame, paired with a specialized strip PP bed board that ensures excellent ventilation, easy cleaning, and a massive 240kg load-bearing capacity without deformation.
Intelligent Monitoring & Precise Adjustments
Equipped with a built-in weighing system and an electronic display on the blow-molded PP footboard, caregivers can accurately monitor patient weight continuously without requiring risky patient transfers. Powered by a highly reliable Jieshun 1-to-4 motor system, it offers smooth, quiet transitions for bed height (450-770mm), backrest elevation (up to 71°), leg rest (up to 52°), and complete Trendelenburg/Reverse Trendelenburg positions (12°).
Comprehensive Safety & Emergency Design
Patient safety is guaranteed through fully enclosed electric PP guardrails that house convenient control panels. In medical emergencies, the one-button Electric CPR and emergency stop button provide immediate response capabilities, fully supported by an integrated backup battery to ensure functionality during power outages. Mobility is managed securely utilizing 5-inch central control castors with side brakes, complemented by four anti-collision bumper wheels to protect both the bed and hospital infrastructure.
