Technical Specifications
| Main Configuration | Stamped carbon steel surface, PP head/footboard, 4-piece drop-down PP side rails |
|---|---|
| System & Safety Features | Jiecang dual-column motor, Weighing system, Nurse Control, Angle indicators, Battery backup |
| Adjustment Range | Height: 540-840mm, Back: 0-75°±5°, Leg: 0-40°±5°, Trend/Reverse: 15°±2°, L/R Tilt: 20°±2° |
| Dimensions & Capacity | Overall: 2200×1060×(540-840)mm, Max Load Capacity: ≥240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel frame, 5-inch center-control side brake wheels, Anti-collision wheels |

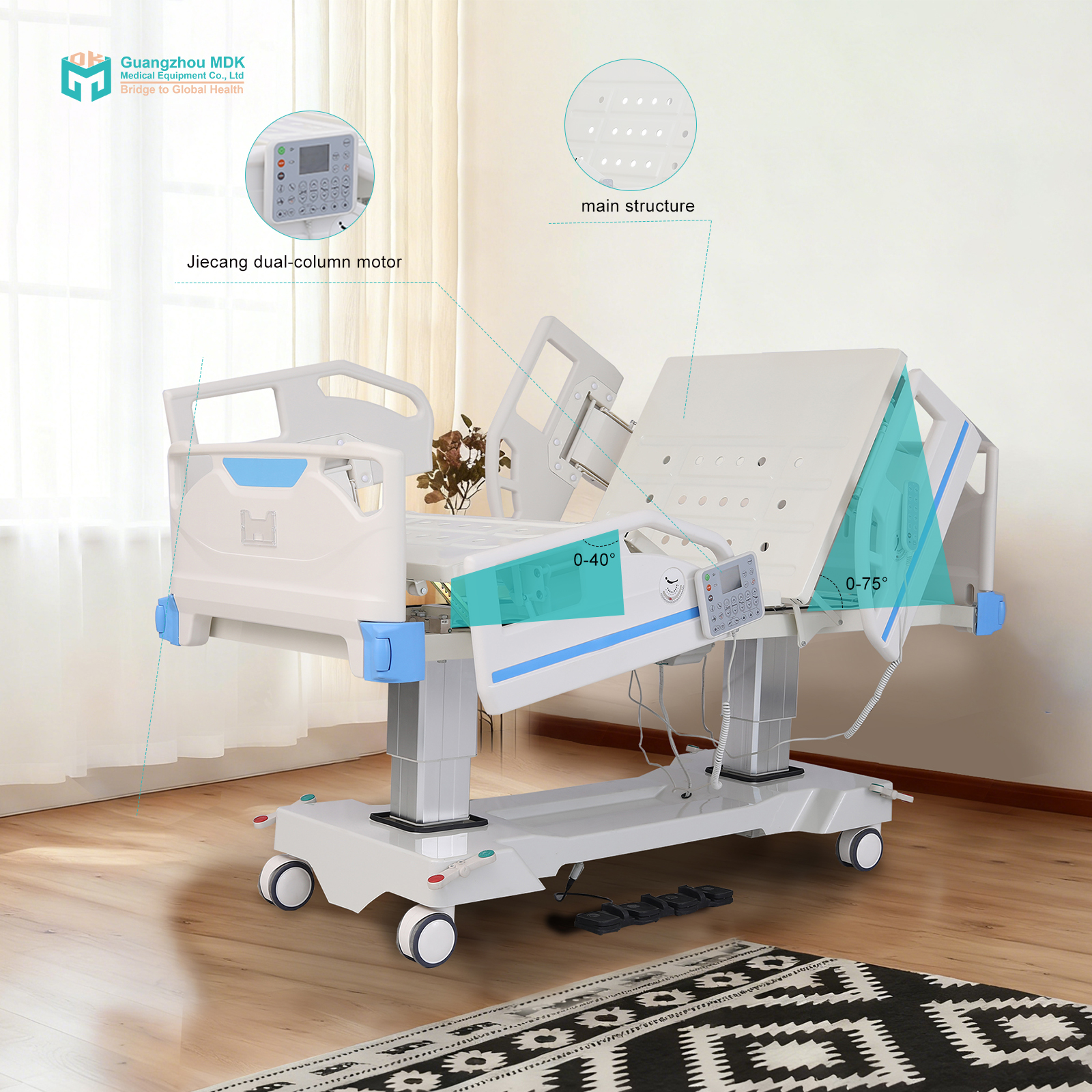

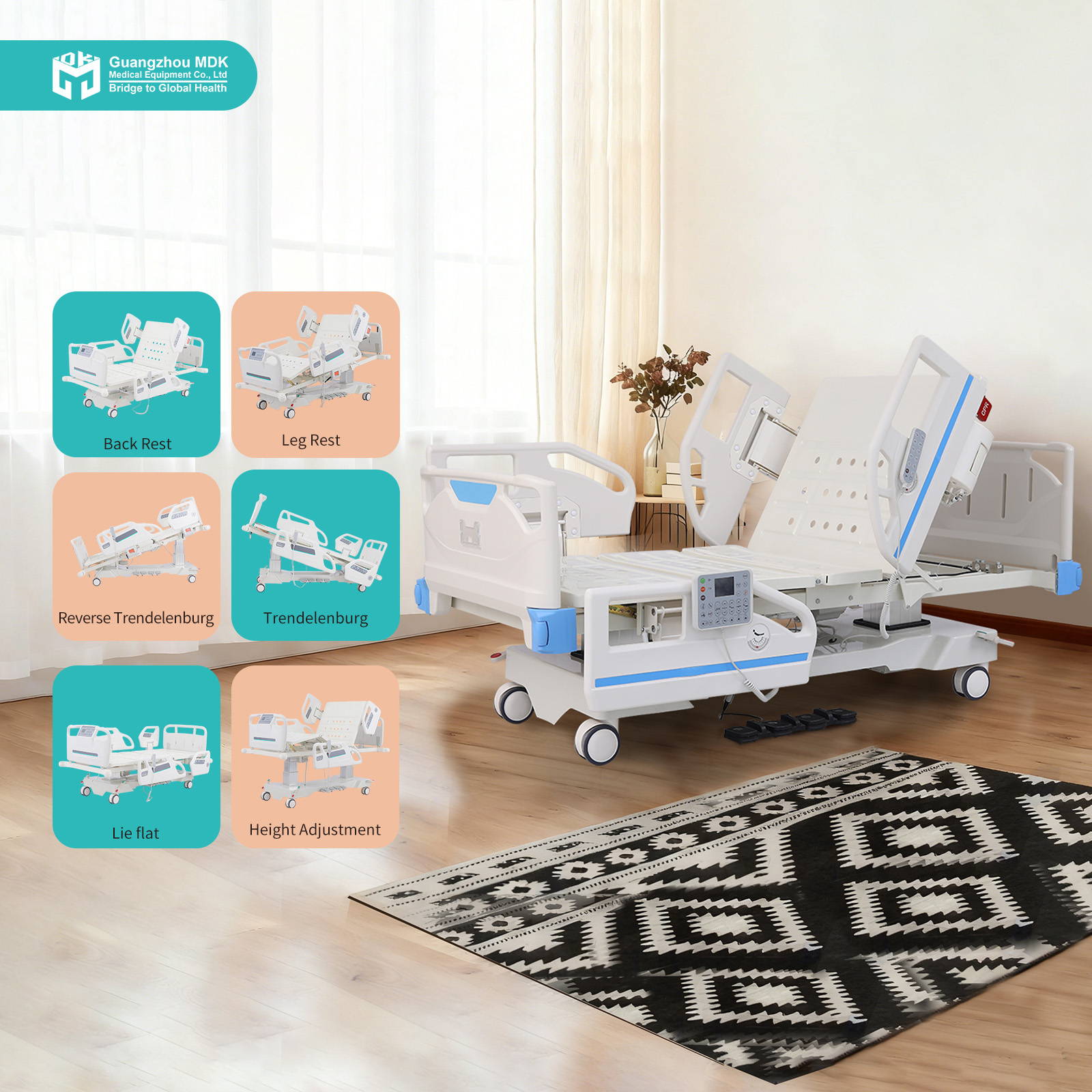

The Ultimate ICU Solution: 7-Function Dual-Column Bed
Representing the pinnacle of medical furniture technology, this 7-function electric medical bed is designed to handle the complexities of modern critical care. The architectural foundation utilizes a heavy-duty 30×60×1.2mm steel pipe frame combined with a one-piece stamped 1.0mm carbon steel surface. This highly durable structure prevents deformation over time and provides rock-solid stability, safely accommodating a maximum patient load of ≥240kg.
Precision Positioning & Integrated Weighing
Driven by the premium Jiecang dual-column motor system, this bed offers unmatched vertical stability and smooth transitions. Caregivers can manage an extensive height range (540-840mm), backrest elevation (75°), leg lift (40°), and full Trendelenburg/Reverse-Trendelenburg (15°). Crucially, it features 20° Left and Right Lateral Tilt, which is vital for respiratory therapy and pressure relief. The integrated weighing system provides highly accurate, real-time patient weight data without the need for stressful patient transfers.
Intelligent Control & Uncompromised Safety
Efficiency and safety are at the core of this bed’s design. The centralized Nurse Control system gives caregivers complete command over all bed adjustments. The four independent, drop-down PP side rails include patented angle indicators for quick visual checks of the patient’s posture. In the event of power outages, the reliable battery backup ensures continuous operation. Smooth and secure transit is guaranteed by 5-inch wear-resistant castors utilizing a highly stable center-control side braking system, while integrated anti-collision wheels protect the hospital’s infrastructure.
