Technical Specifications
| Main Configuration | One-piece stamped carbon steel surface, PP head/footboard, 4-piece drop-down PP side rails |
|---|---|
| System & Safety Features | Jieshun motor system, Drop-down locking side rails, Blow-molded locking headboard |
| Adjustment Range | Height: 400-700mm, Back: 0-80°±5°, Knee: 0-45°±5°, Trendelenburg/Reverse: 12°±2° |
| Dimensions & Capacity | Overall: 2130×1100×400-700mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel pipe frame, 5-inch center-control side brake wheels |
Versatile Care with the Advanced 5-Function Electric Hospital Bed
Designed to deliver exceptional comfort and operational efficiency, this 5-function electric hospital bed is an ideal solution for modern medical facilities and premium care environments. The core foundation is built from a high-quality 30×60×1.2mm steel pipe frame, seamlessly integrated with a 1.0mm one-piece stamped carbon steel surface. This heavy-duty construction ensures maximum stability, prevents deformation, and boasts a superior load-bearing capacity of 240kg, accommodating a wide range of patients safely.
Smooth Adjustments & Reliable Performance

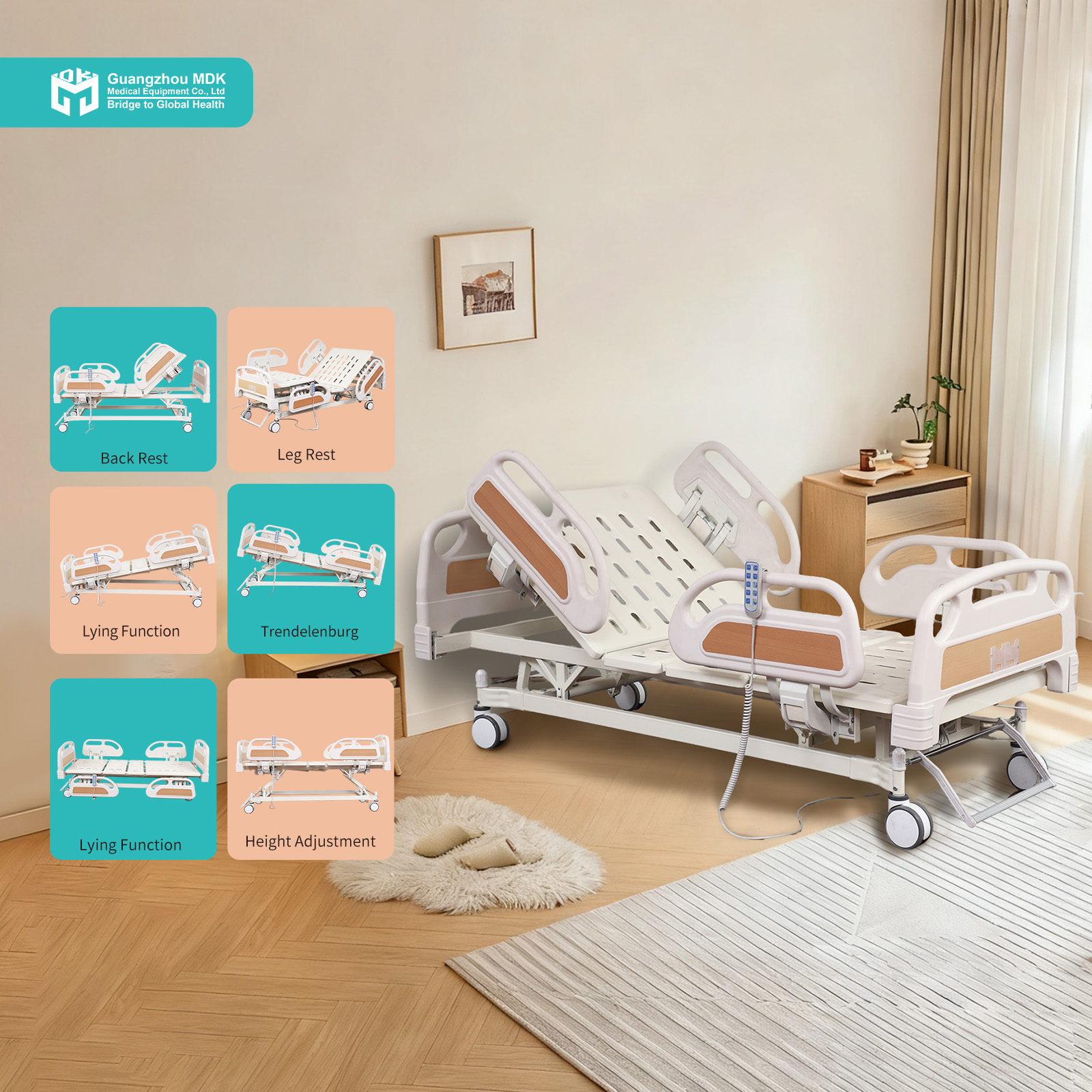

Driven by the highly trusted Jieshun motor system, this bed provides ultra-smooth and quiet adjustments to meet diverse medical requirements. Caregivers can easily control the bed height (400-700mm), elevate the backrest (up to 80°), adjust the knee rest (up to 45°), and utilize the Trendelenburg and Reverse-Trendelenburg functions (12°). These precise adjustments are crucial for improving patient circulation, respiratory function, and overall comfort during recovery.
Uncompromised Safety & Convenience

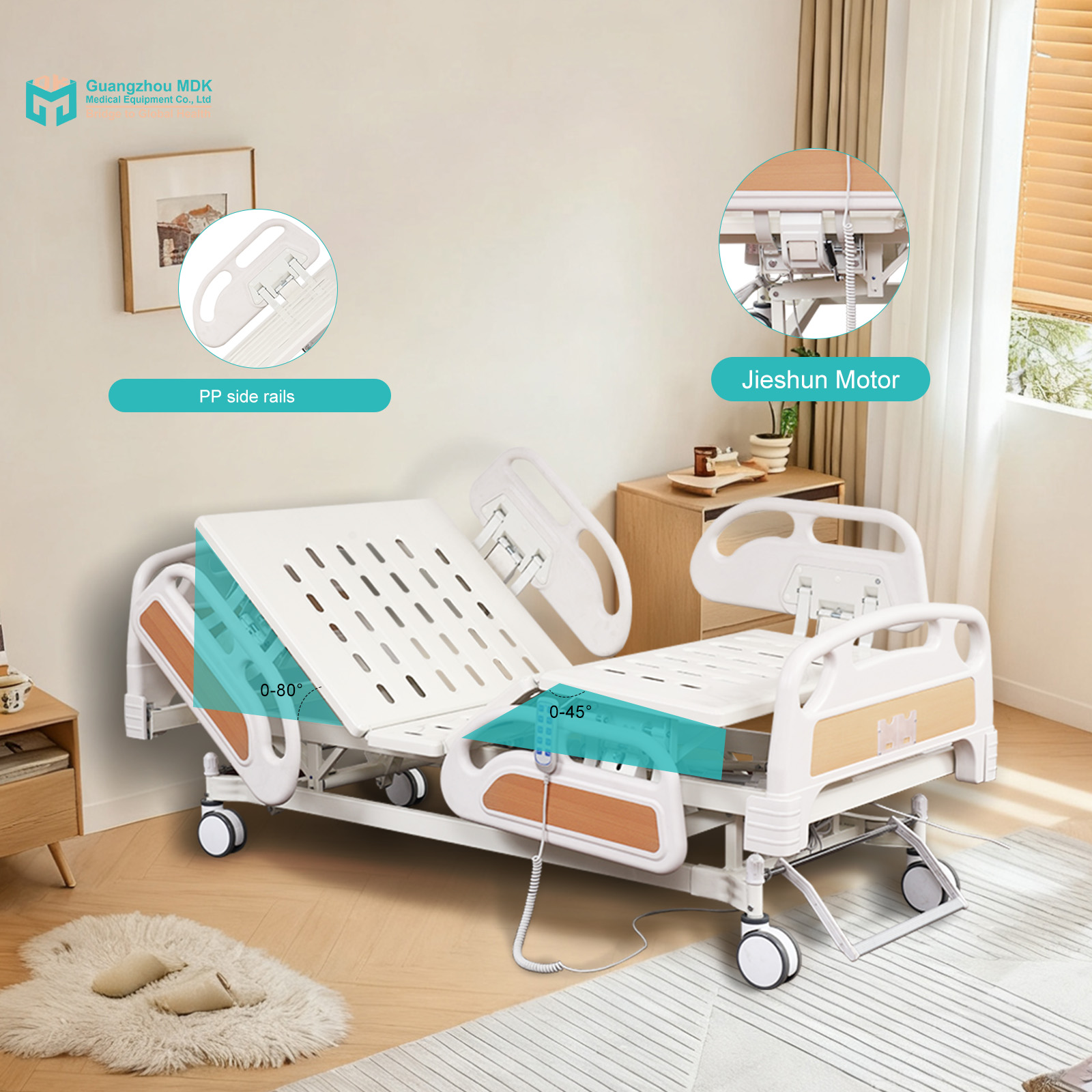

Patient security is a top priority in the design of this bed. It is equipped with four independent, drop-down PP side rails that can be retracted freely and locked tightly into place, preventing accidental falls while allowing easy access for caregivers. Both the head and footboards are crafted from durable blow-molded PP material and feature secure locking devices. For effortless maneuverability and steadfast positioning, the bed rests on 5-inch wear-resistant castors equipped with a center-control side braking system, offering flexible rotation alongside high safety and stability.
