Spécifications techniques
| Configuration principale | Stamped carbon steel surface, DL PP head/footboard, 4-piece drop-down DL PP side rails |
|---|---|
| Système & Caractéristiques de sécurité | Jieshun system, Nurse Control, Anti-pinch backboard, Electric/Manual CPR, Battery backup |
| Plage de réglage | Height: 425-815mm, Dos: 0-70°±5°, Genou: 0-30°±5°, Trend/Reverse: 12°±2° |
| Dimensions & Capacité | Overall: 2180×1120×(425-815)mm, Capacité de charge maximale: 240 KG |
| Mobilité & Matériau du cadre | 30×60×1.2mm steel frame, 5-roues jumelées silencieuses en pouces avec 4 freins, Anti-collision wheels |

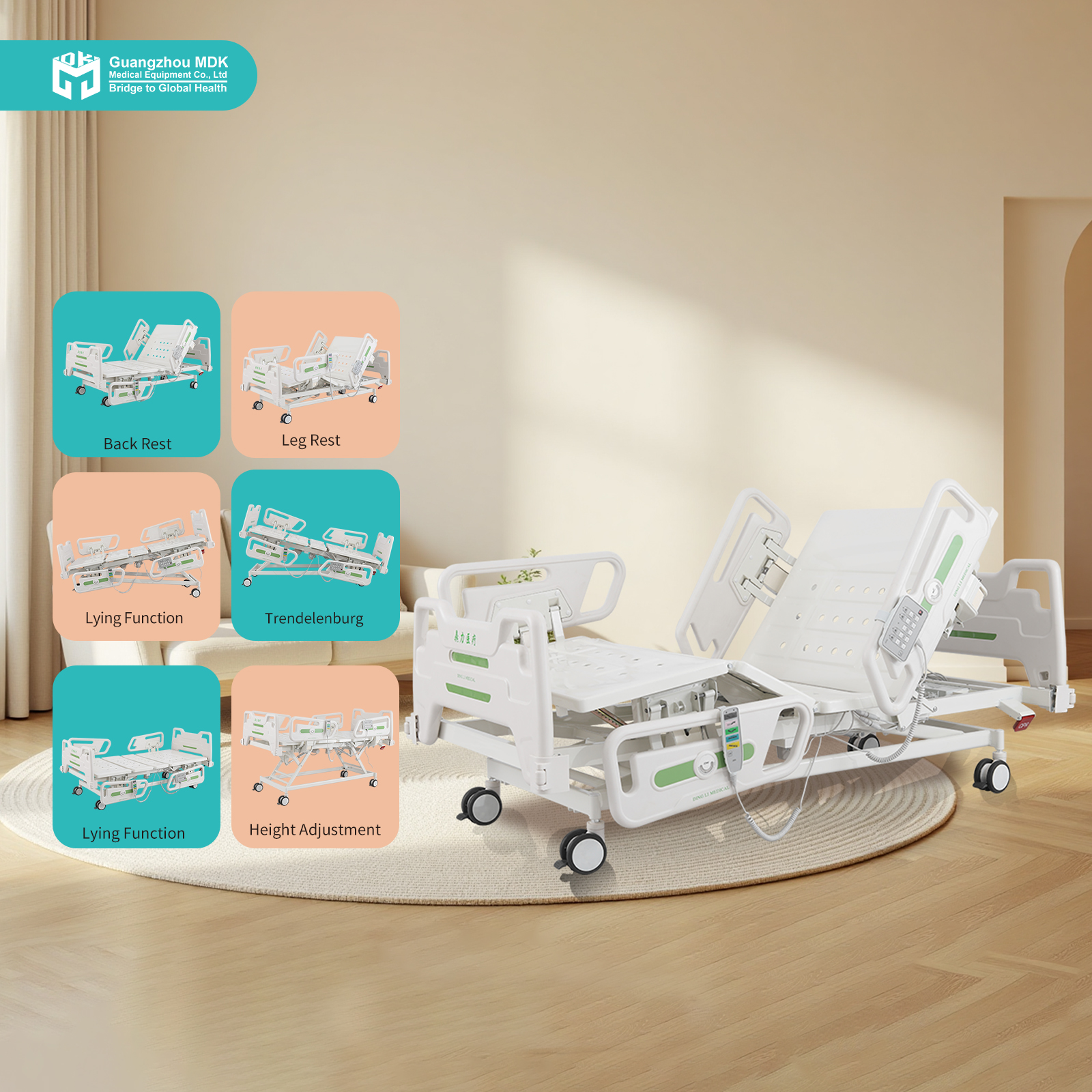

Uncompromising Care with Advanced 5-Function Design
Elevate the standard of patient care with this state-of-the-art 5-function electric medical bed. Designed specifically for demanding healthcare environments, it is built upon a rugged 30×60×1.2mm high-quality steel pipe frame and a 1.0mm one-piece stamped carbon steel surface. This robust architectural foundation prevents deformation over time and safely accommodates a high maximum load of 240kg, ensuring durability and reliability for all patient demographics.
Intelligent Positioning & Centralized Control

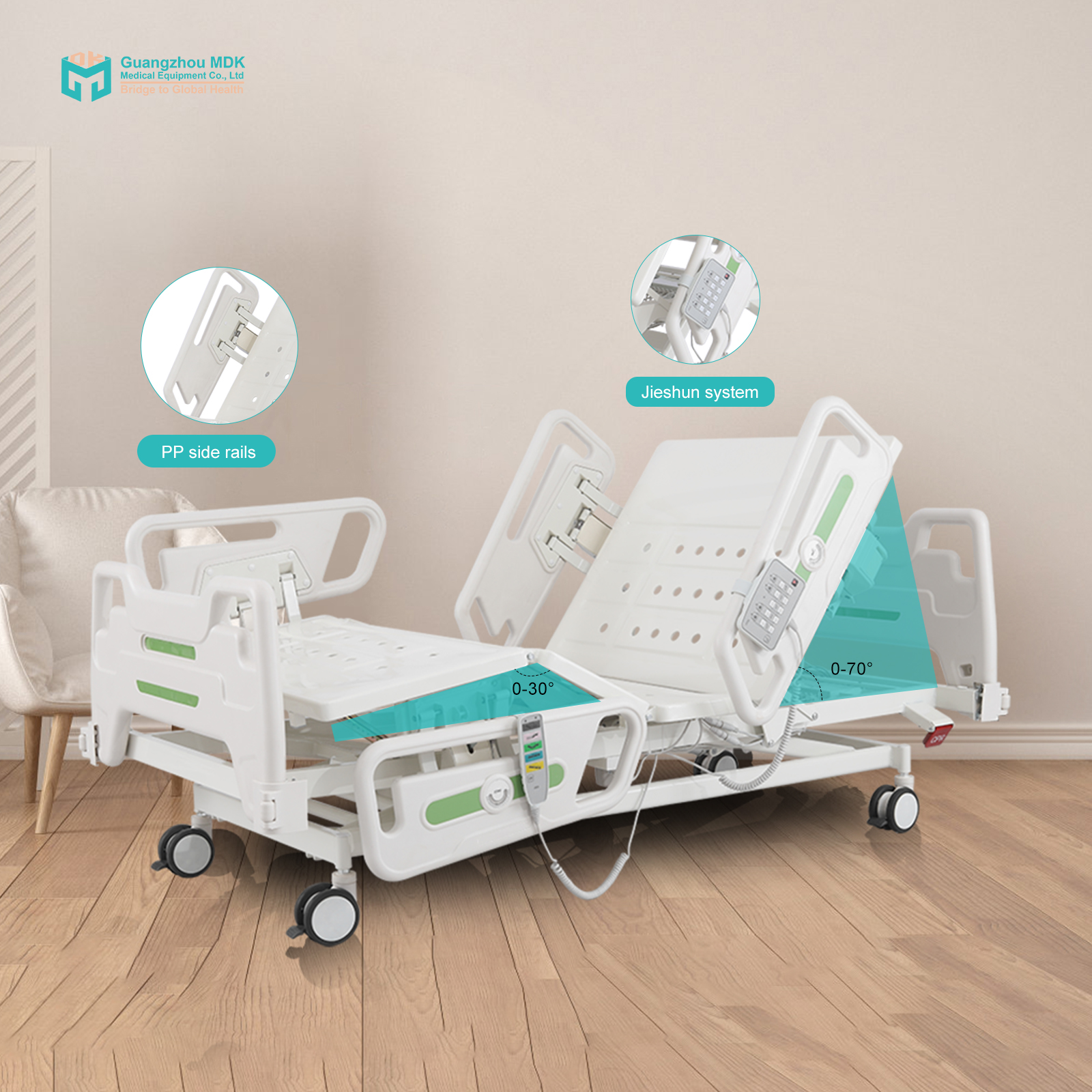

Powered by the highly trusted Jieshun motor system, this bed offers exceptionally smooth and whisper-quiet postural adjustments. The standout feature is the centralized Nurse Control system, which empowers caregivers to swiftly manage the bed’s height (425-815mm), elevate the backrest (up to 70°), adjust the knee rest (up to 30°), and initiate full 12° Trendelenburg/Reverse-Trendelenburg positions. For added precision, the drop-down DL PP side rails incorporate patented angle indicators, allowing medical staff to verify the patient’s exact posture at a single glance.
Maximum Safety & Emergency Readiness
Patient protection is engineered into every component. The bed features an innovative anti-pinch backboard that protects patients during complex positional changes. In critical medical scenarios, the Dual CPR system (both Electric and Manual) enables instantaneous flattening of the bed, while the built-in battery backup guarantees that vital functions remain operational during power failures. Safe transit and positioning are effortlessly handled by 5-inch silent dual wheels with four independent braking devices, complemented by anti-collision wheels on the DL PP head and footboards to protect facility infrastructure.
