Spécifications techniques
| Configuration principale | 1.0mm surface en acier embouti d'une seule pièce, Tête/pieds de lit en PP, Barrières latérales en aluminium |
|---|---|
| Système & Caractéristiques de sécurité | Jieshun 3-function motor, Quick-fold red button rails, Secure locking device |
| Plage de réglage | Height: 400-700mm, Dos: 0-75°±5°, Genou: 0-45°±5° |
| Dimensions & Capacité | Taille globale: 2130×990×(400-700)mm, Capacité de charge maximale: 240 KG |
| Mobilité & Matériau du cadre | 30×60×1.2mm steel frame, 5-roues jumelées silencieuses en pouces avec 4 freins |
Enhanced Durability for Daily Care
Built to withstand the high-traffic environment of standard hospital wards and clinics, this bed is founded on a rugged 30×60×1.2mm steel frame. It distinguishes itself with a 1.0mm one-piece stamped carbon steel surface. This upgraded structural integrity completely prevents deformation over time and comfortably supports a maximum load of 240kg, offering excellent long-term value.
Efficient Postural Management

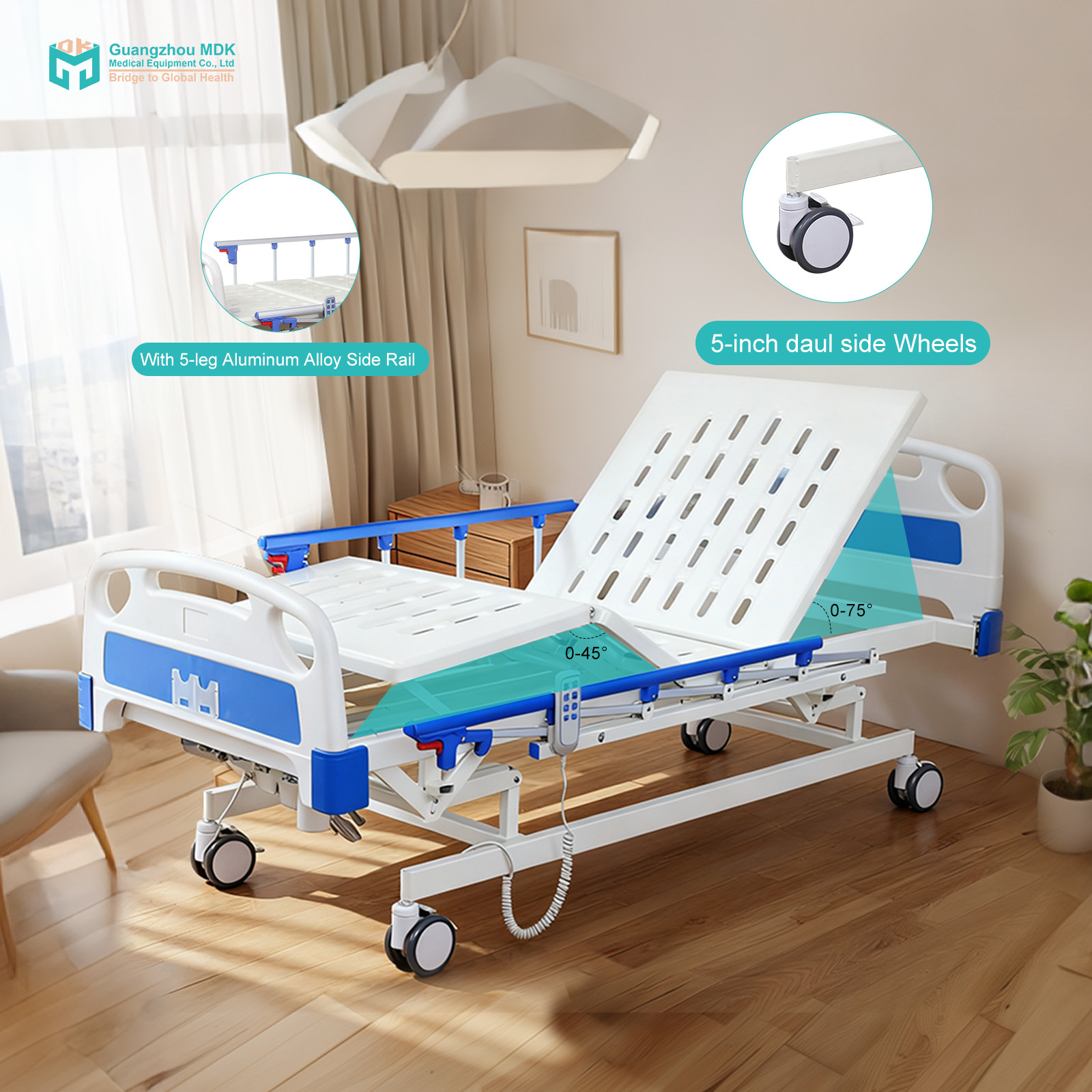

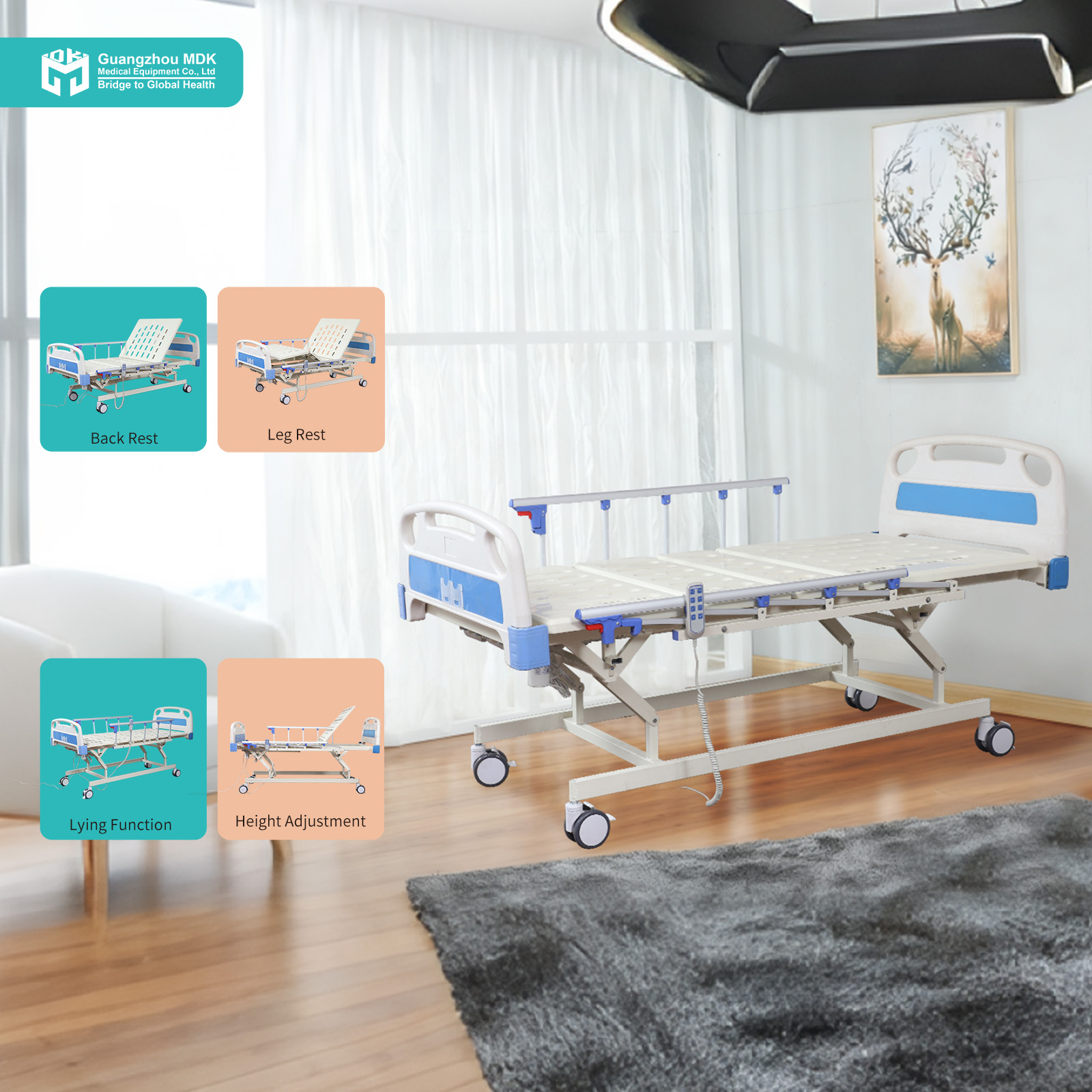

Powered by a whisper-quiet Jieshun 3-function motor, caregivers can instantly elevate the backrest (jusqu'à 75°), adjust the knee rest (jusqu'à 45°), and modify the overall bed height (400-700mm). These essential adjustments minimize caregiver physical strain during patient transfers while maximizing patient comfort and respiratory function.
Practical Safety Features
Patient safety is straightforward and highly effective. The bed is equipped with sturdy 5-leg aluminum alloy side rails (hauteur ≥350mm, Longueur ≥1170mm) that lock tightly into position and fold down smoothly via a red push-button. Secure positioning is guaranteed by premium 5-inch silent dual wheels with a four-point independent braking system.
