Технические характеристики
| Основная конфигурация | One-piece stamped carbon steel surface, DL PP head/footboard, 4-piece drop-down PP side rails |
|---|---|
| Система & Функции безопасности | Jiecang dual-column motor, Patent angle indicator, Колеса для предотвращения столкновений, Optional battery |
| Диапазон регулировки | Высота: 545-855мм, Назад: 0-75°±5°, Foot: 0-35°±5°, Trend/Reverse Trend: 15°±2° |
| Размеры & Емкость | Общий: 2160×1110×(595-995)мм, Максимальная грузоподъемность: ≥240 KG |
| Мобильность & Материал рамы | 30×60×1.2mm steel pipe frame, 5-inch center-control side brake wheels |

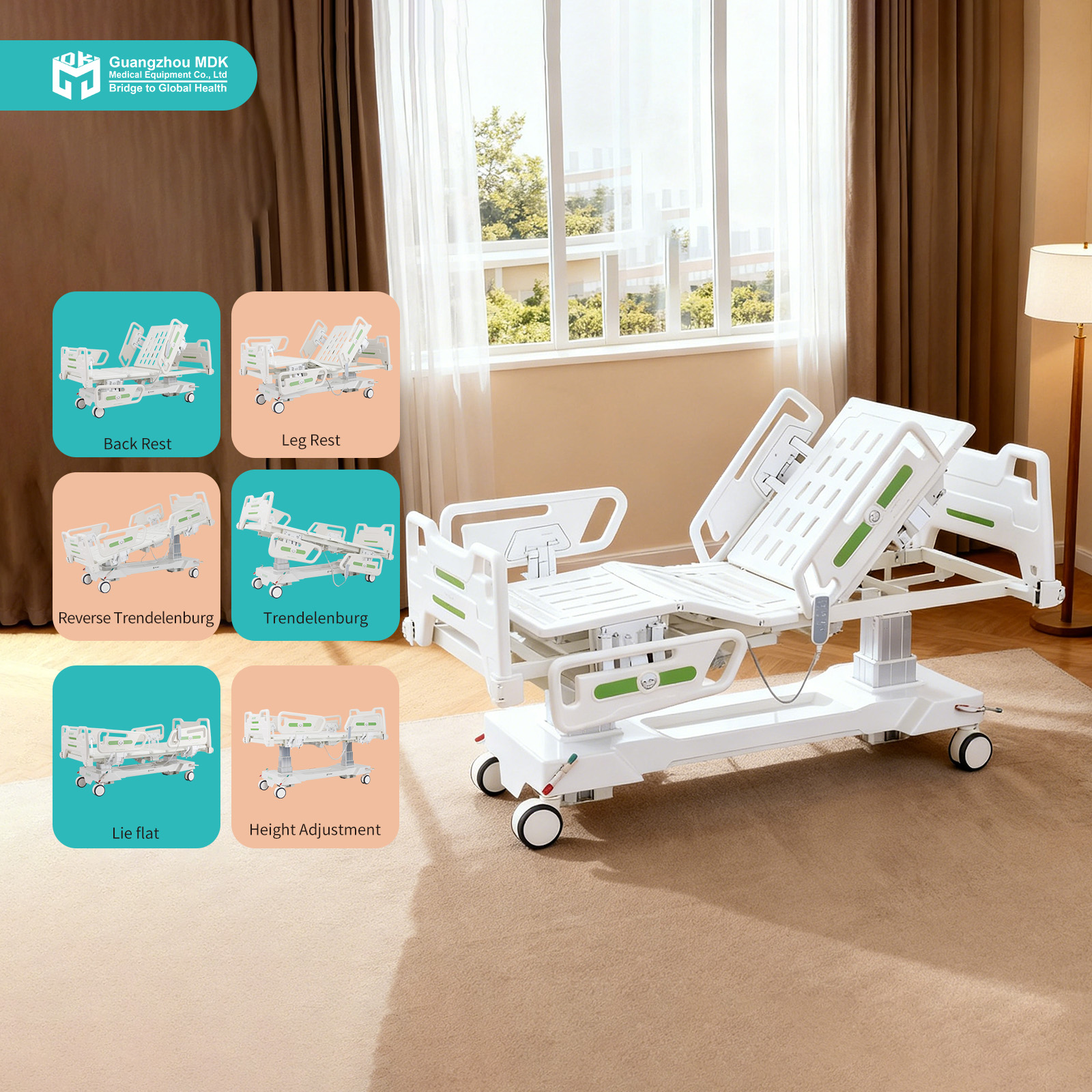

Next-Generation Stability with the Dual-Column Electric Hospital Bed
Revolutionize patient care with this state-of-the-art 5-function electric hospital bed, distinguished by its advanced Jiecang dual-column motor system. Unlike traditional designs, the electric column architecture provides exceptional vertical stability and a clean, modern aesthetic. The bed is constructed with a 30×60×1.2mm high-quality steel pipe frame and a robust 1.0mm one-piece stamped carbon steel surface, ensuring a massive 240kg load capacity without deformation.
Precision Control & Postural Management
Driven by the premium Jiecang motor system, caregivers can effortlessly manage comprehensive patient positioning. The bed offers an extensive height adjustment range (545-855мм), alongside precise backrest elevation (up to 75°), footrest adjustment (up to 35°), and full 15° Trendelenburg/Reverse-Trendelenburg capabilities. For added precision, the drop-down PP side rails are integrated with patented angle indicators, allowing medical staff to monitor the exact back and knee rest angles at a glance.
Uncompromised Safety & Мобильность
Every detail is engineered for patient and facility safety. The DL PP blow-molded head and footboards feature secure locking devices and integrated anti-collision bumper wheels to protect hospital walls during transit. The four independent drop-down side rails retract freely and lock tightly to prevent accidental falls. Secure maneuverability is guaranteed by 5-inch wear-resistant castors utilizing a highly stable center-control side braking system, offering both flexible rotation and rock-solid stationary security. An optional battery backup is also available to ensure continuous operation during power outages.
