Technical Specifications
| Main Configuration | 0.7mm stamped slat surface, PP head/footboard, 5-leg aluminum alloy side rails |
|---|---|
| System & Safety Features | Jieshun 3-function motor system, Red button quick-fold rails, Locking device |
| Adjustment Range | Height: 400-700mm, Back: 0-75°±5°, Knee: 0-45°±5° |
| Dimensions & Capacity | Overall Size: 2130×990×(400-700)mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel frame, 5-inch silent dual wheels with 4 braking devices |

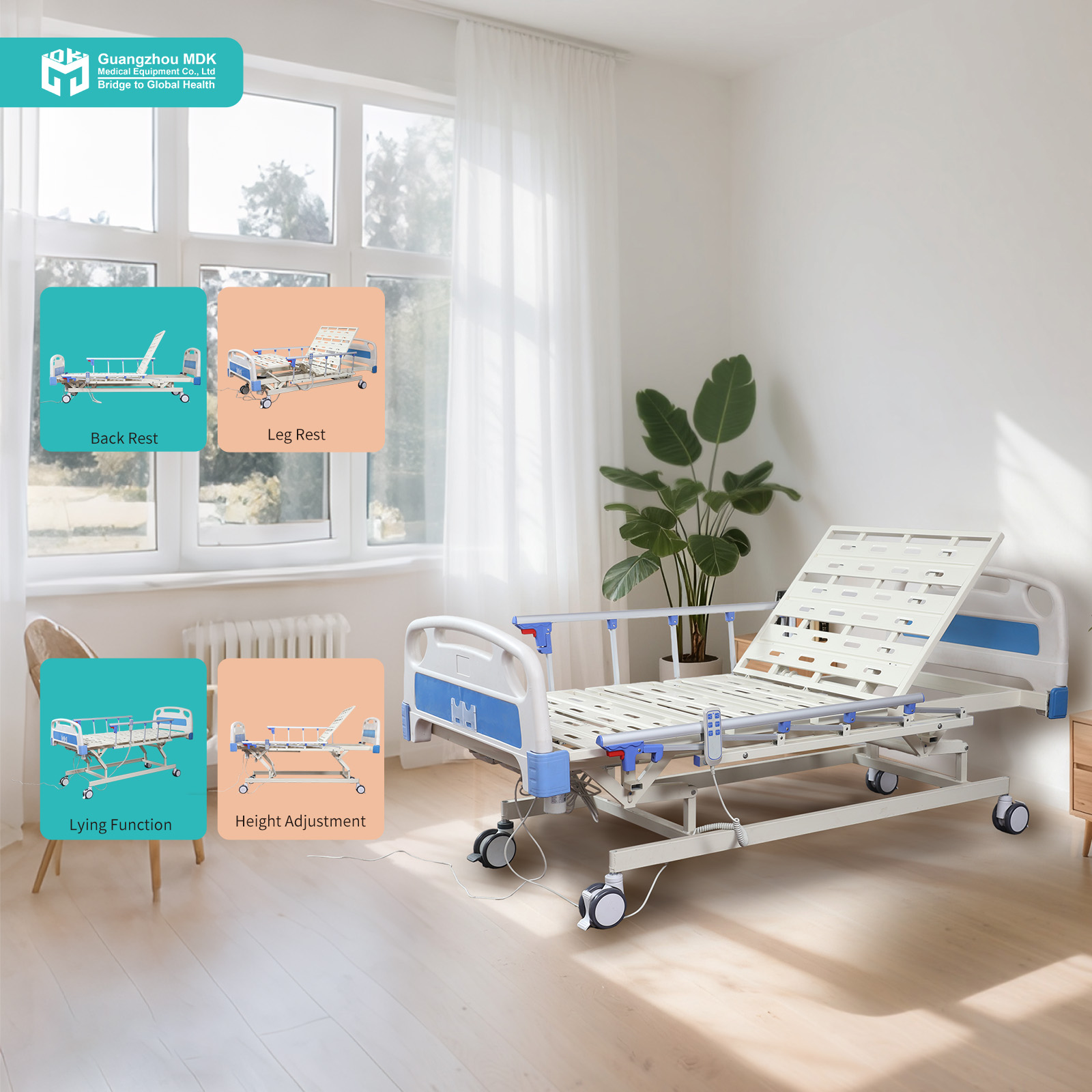

Reliable Care for Standard Wards
Engineered to deliver exceptional value without compromising on quality, this 3-function electric hospital bed is the perfect solution for standard hospital wards, clinics, and care facilities. Its foundation is built on a strong 30×60×1.2mm steel pipe frame combined with a 0.7mm thick stamped slat surface, ensuring it can safely and comfortably support a maximum load of 240kg for long-term daily use.
Effortless Adjustments & Practical Safety
Driven by a high-performance Jieshun 3-function motor, caregivers can easily adjust the bed’s height (400-700mm) to reduce physical strain during patient transfers. The backrest can be elevated up to 75°, and the knee rest up to 45°, promoting better patient posture and comfort.
Patient safety is straightforward and highly effective.
The bed is equipped with 5-leg aluminum alloy side rails (≥350mm height, ≥1170mm length) that lock tightly into place. When access is needed, the rails fold down smoothly with the simple press of a red button. Maneuverability is equally reliable, utilizing 5-inch silent dual side wheels with four individual brakes for secure stationary positioning.
