Technical Specifications
| Main Configuration | PP bed board, electric PP guardrails, 30×60×1.5mm standard steel pipe frame |
|---|---|
| System & Safety Features | Jieshun 4-motor system, Built-in weighing scale, Dual CPR, 5-inch side-brake castors |
| Adjustment Range | Height: 455-820mm, Backrest: 69°±2°, Leg: 36°±2°, Trendelenburg/Reverse: 13°±2° |
| Dimensions & Capacity | Overall: 2265×1090×875mm, Bed Surface: 1970×900mm, Max Load: ≥240 KG |
| Packaging Details | Size: 2130×850×470mm, Net Weight: 138 KG, Gross Weight: 148 KG |

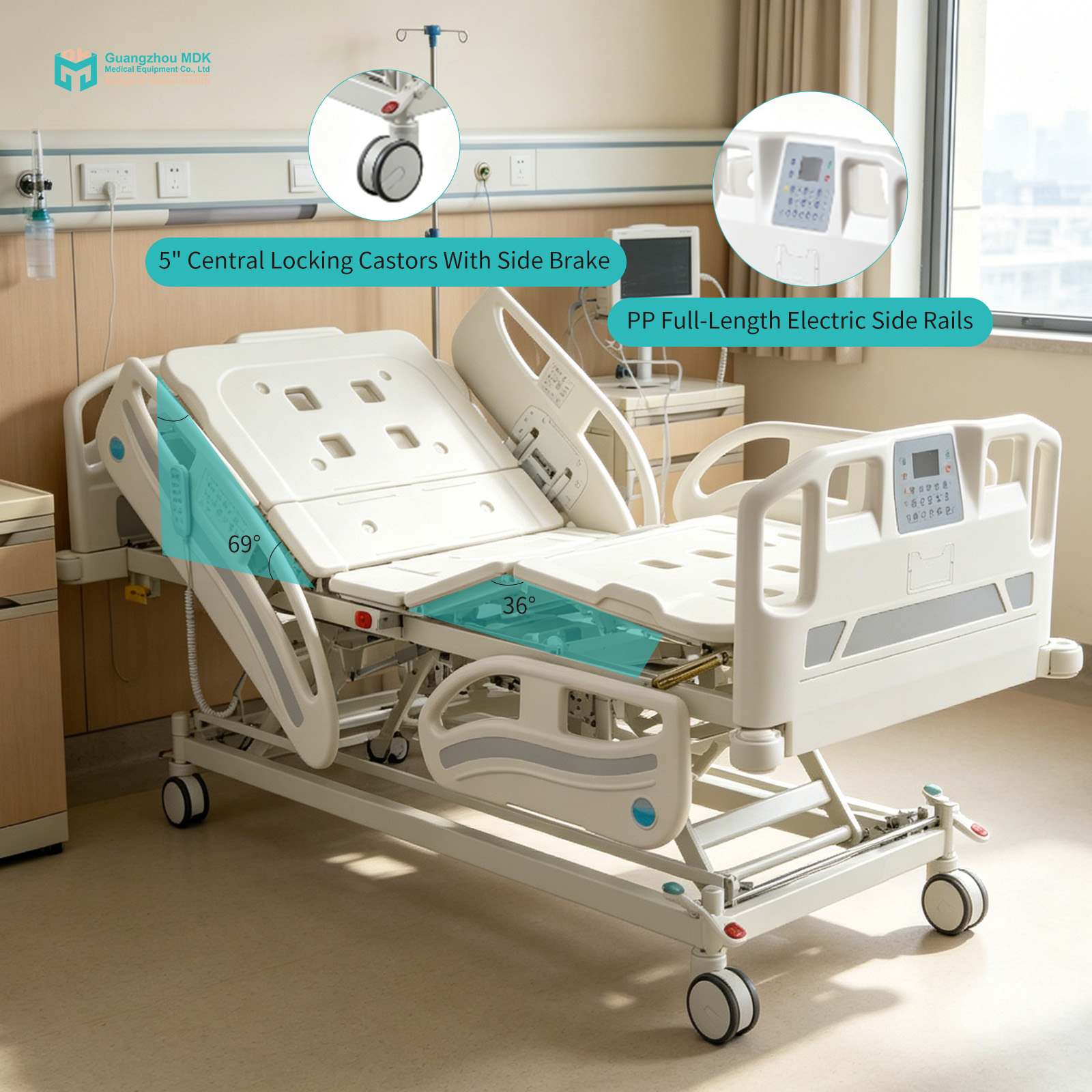

Exceptional Care with the Premium 5-Function Electric ICU Bed
This state-of-the-art electric ICU hospital bed is engineered to meet the rigorous demands of intensive care environments. The core framework is constructed from high-quality 30601.5mm national standard steel pipes, ensuring robust stability and a high load-bearing capacity of up to 240KG.
Intelligent Care Features

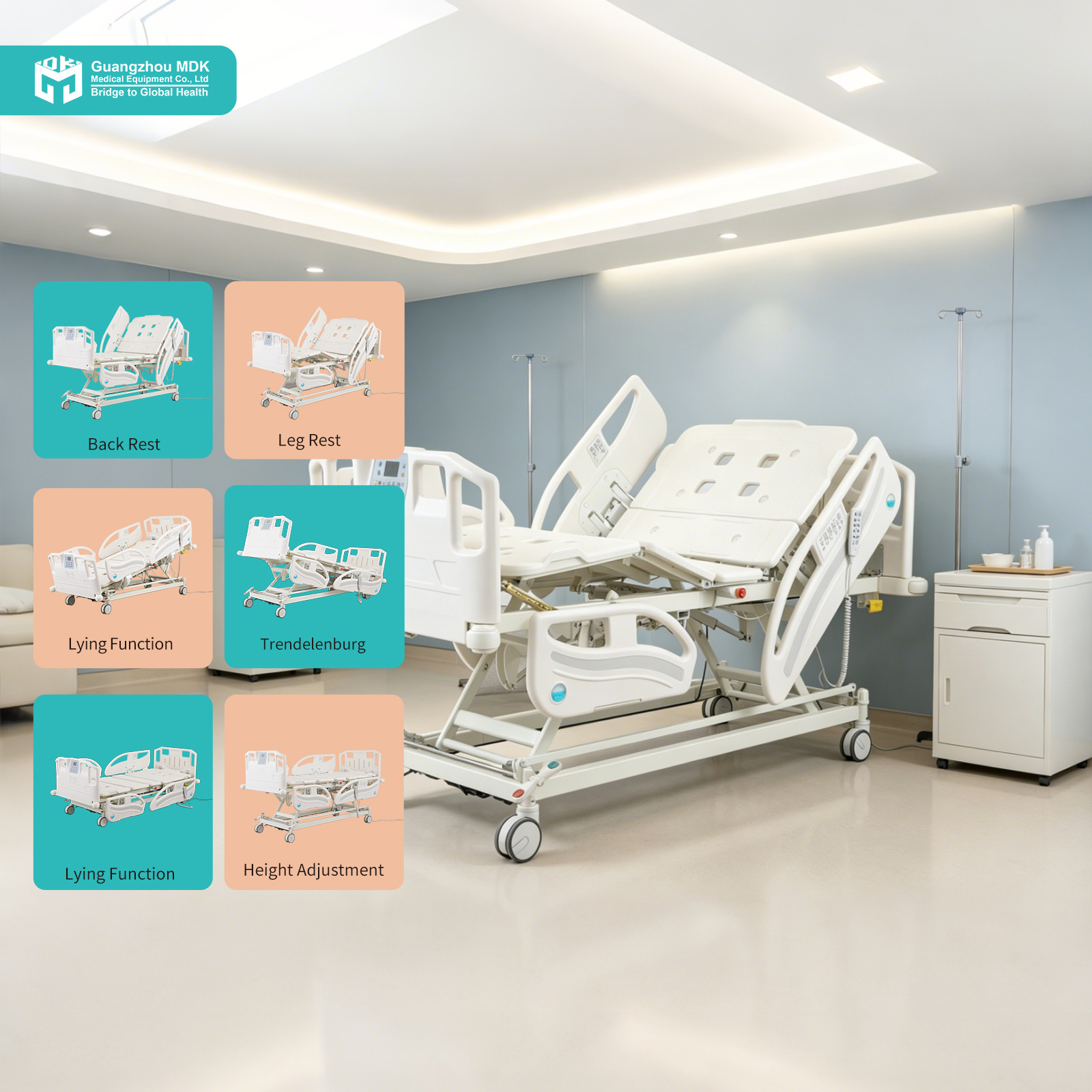

Patient monitoring is simplified with the integrated weighing scale system. The footboard features a convenient electronic display screen, allowing medical staff to track patient weight accurately without requiring patient transfer. The bed is driven by a premium Jieshun motor system, enabling seamless adjustments including Hi-Low, backrest, knee-break, Trendelenburg, and Reverse Trendelenburg positions.
Maximum Safety and Mobility
Safety is paramount in critical care. This bed is equipped with fully enclosed PP large guardrails that incorporate electrical controls for easy patient and caregiver access. In case of cardiac emergencies, the bed supports both Electric and Manual CPR functions to flatten the bed instantly. Additional safety features include an emergency stop button and four anti-collision bumper wheels. Mobility is safely managed by 5-inch castors with a side-brake central control system, keeping the bed firmly in place when needed.
