Technical Specifications
| Main Configuration | Mattress, Shampoo basin, Bed pan, Wooden table, PP boards, Aluminum rails |
|---|---|
| Control System & Features | 3 metal cranks (Manual), Anti-slip design, Lateral tilt, Leg-down chair position |
| Adjustment Range | Back: 0-75°±5°, Leg Up: 0-20°±5°, Knee Down: 0-60°±5°, Lateral Tilt: 0-75°±5° |
| Dimensions & Capacity | Overall Size: 2120×960×500mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 40×60×1.2mm steel frame, 5-inch silent wheels with 4 independent brakes |

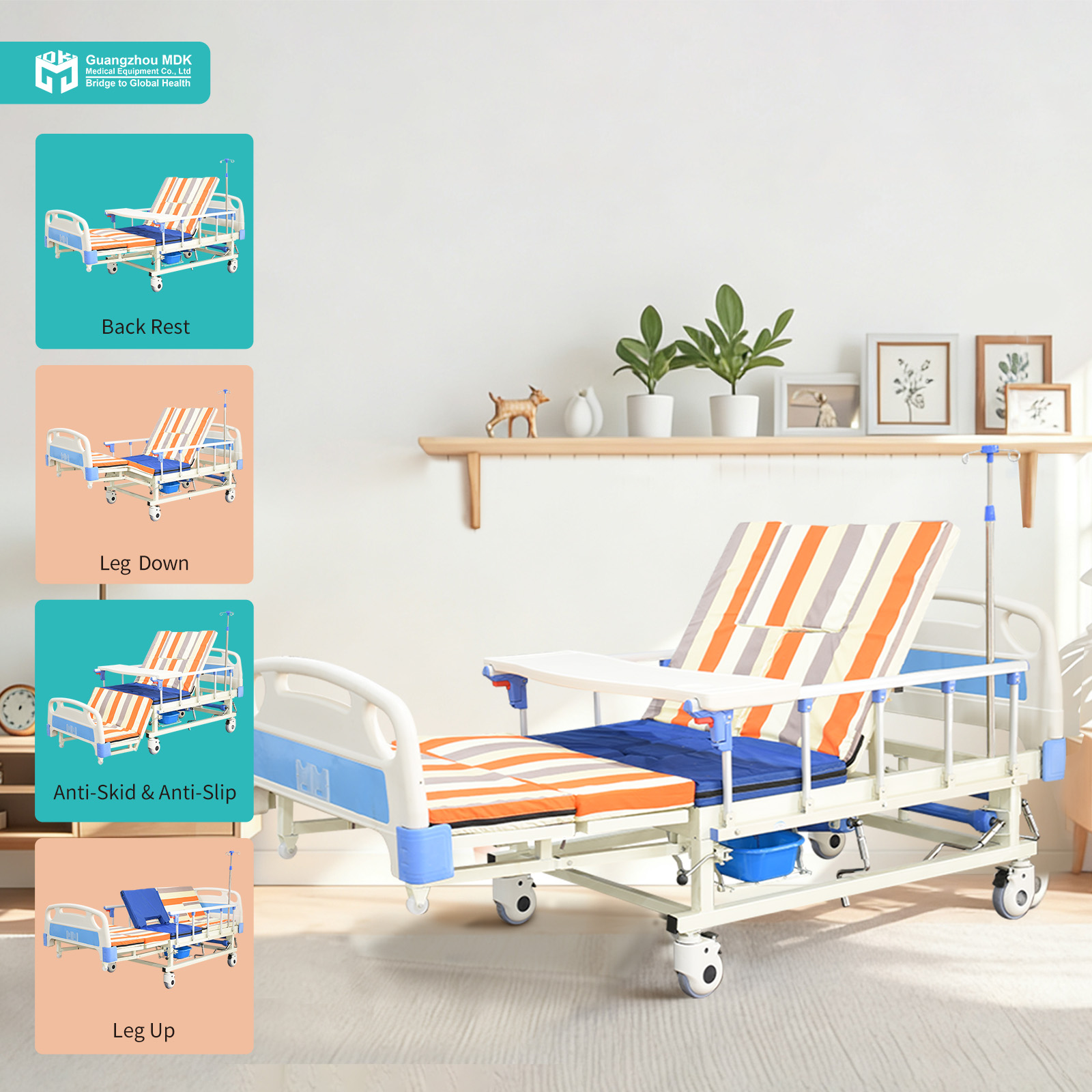

Comprehensive Care, Independent of Power
Engineered for reliable, long-term home nursing, this 3-crank manual homecare bed delivers advanced postural management without requiring electricity. Built upon a heavy-duty 40×60×1.2mm rectangular steel frame, it eliminates structural deformation and safely supports a patient weight of up to 240kg. Designed as an all-in-one solution, the bed arrives fully accessorized with a tailored mattress, shampoo basin, built-in bed pan, and a wooden dining table, immediately easing the burden on caregivers.
Advanced Positioning & Anti-Slip Technology
Utilizing three smooth-operating metal cranks at the foot of the bed, caregivers can effortlessly adjust the patient’s posture. Elevate the backrest up to 75° for meals, drop the knee rest up to 60° to create a natural chair-like seating position, and apply up to 75° of lateral tilt to assist with turning and bedsore prevention. Crucially, the half-curved anti-slip design ensures the patient remains securely in place without sliding down when sitting up.
Practical Safety & Mobility
Patient security is seamlessly integrated into the design. The bed features robust 5-leg aluminum alloy side rails (≥350mm in height) that lock firmly to prevent accidental falls and fold down instantly via a red push-button for unhindered access. Movement is managed by 5-inch silent wheels equipped with four independent braking devices, ensuring the bed can be repositioned smoothly and locked securely during daily care routines.
