Technical Specifications
| Main Configuration | Mattress, Shampoo basin, Bed pan, PP table, PP boards, Aluminum guardrails |
|---|---|
| System & Special Features | Jieshun motor (Electric & Manual), Anti-slip design, Lateral tilt, Leg-down |
| Adjustment Range | Back: 0-75°, Leg Up: 0-20°, Leg Down: 0-60°, Lateral Tilt: 0-75° |
| Dimensions & Capacity | Overall Size: 2120×960×470mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel frame, 5-inch silent dual wheels with 4 brakes |

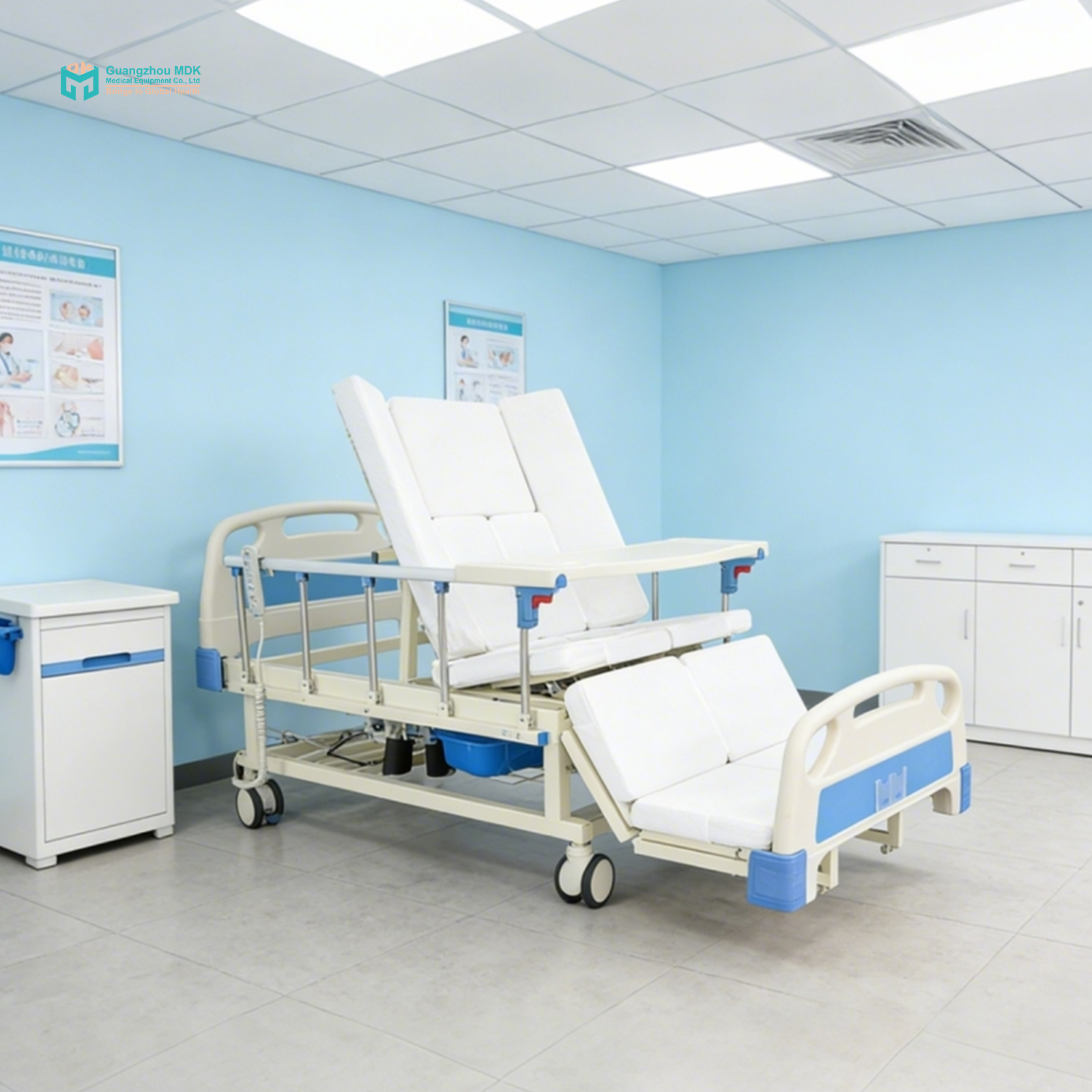

The Complete Home Nursing Solution
Designed to transform the challenges of long-term care into a manageable, dignified process. This bed arrives fully equipped with a tailored mattress, a built-in bed pan system, a shampoo basin, and a PP dining table. The 30×60×1.2mm rectangular steel frame ensures zero structural compromise, safely supporting up to 240kg while providing a warm, non-clinical aesthetic suitable for any home environment.
Uninterrupted Dual-Mode Control
Powered by a premium Jieshun motor, caregivers can effortlessly manage complex postural adjustments. Uniquely, this bed features both electric and manual controls (via an integrated handle), guaranteeing that critical adjustments can still be made during unexpected power failures.

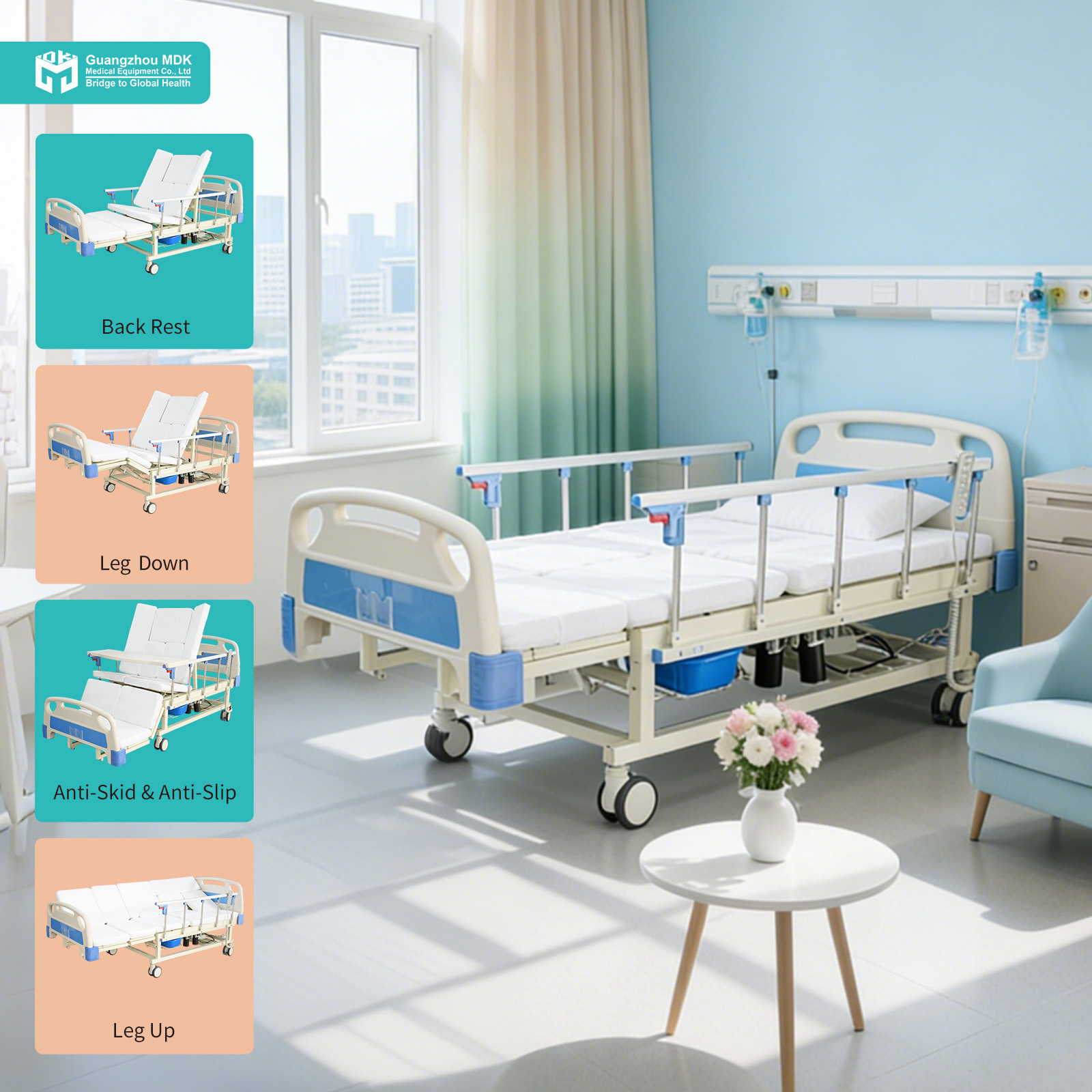

Advanced Posture & Bedsore Prevention
Engineered for bedridden patients, the bed offers exceptional articulation. Caregivers can elevate the backrest (75°), drop the leg rest (60°) to create a natural chair position, and utilize the full lateral tilt (75°) to turn the patient and prevent pressure ulcers. The built-in anti-skid function actively prevents the patient from sliding down when sitting up. Safety is further reinforced by 5-leg aluminum alloy side rails with a quick-release red button and 5-inch silent dual wheels with secure braking.
