Foldable High Back Reclining Electric Wheelchair with Carbon Steel Frame

Foldable High Back Reclining Electric Wheelchair with Carbon Steel Frame

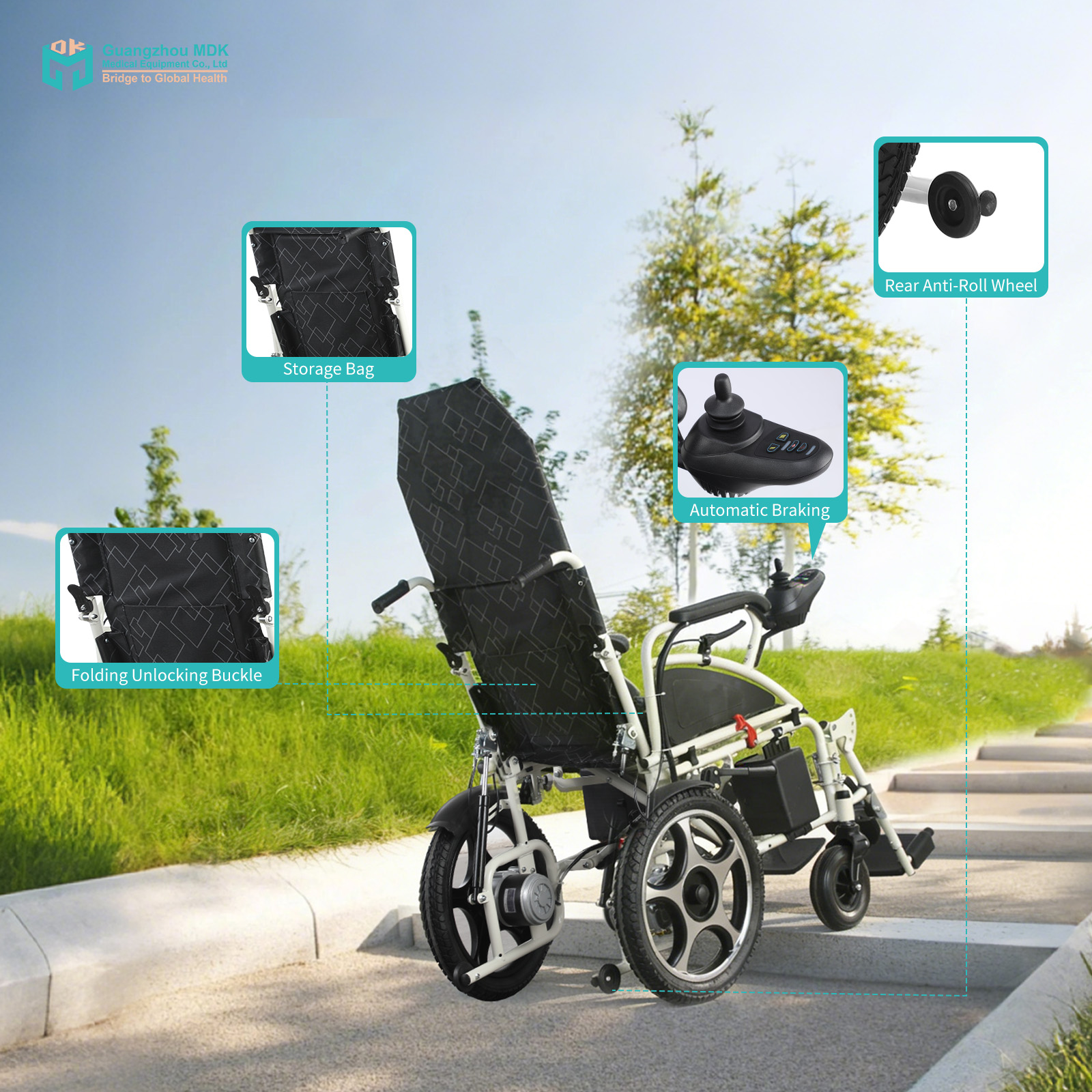

This versatile high-back electric wheelchair is designed for exceptional comfort and effortless mobility. Built on a heavy-duty carbon steel frame, it provides outstanding durability and structural stability. Featuring an ergonomic reclining backrest and a highly intuitive 360° smart controller, it ensures a smooth ride. Powered by a reliable 250W motor and a 12A lead-acid battery (with a 20A upgrade option), it offers robust daily performance. The quick-fold mechanism reduces the chair to a compact size for easy transport, making it an ideal choice for both indoor use and outdoor travel.

Highlights

编组 Heavy-Duty Carbon Steel: Constructed from high-strength carbon steel, ensuring long-lasting durability and securely supporting up to 100KG.
编组 Reclining High Backrest: The 830mm extended backrest provides superior head and spine support, allowing users to safely recline and rest.
编组 Effortless Folding Design: "Easy as Pie" folding mechanism collapses the wheelchair to a compact size (800*370*770mm) for convenient trunk storage.
编组 360° Smart Controller: Highly responsive joystick ensures precise, one-handed maneuverability in any direction.

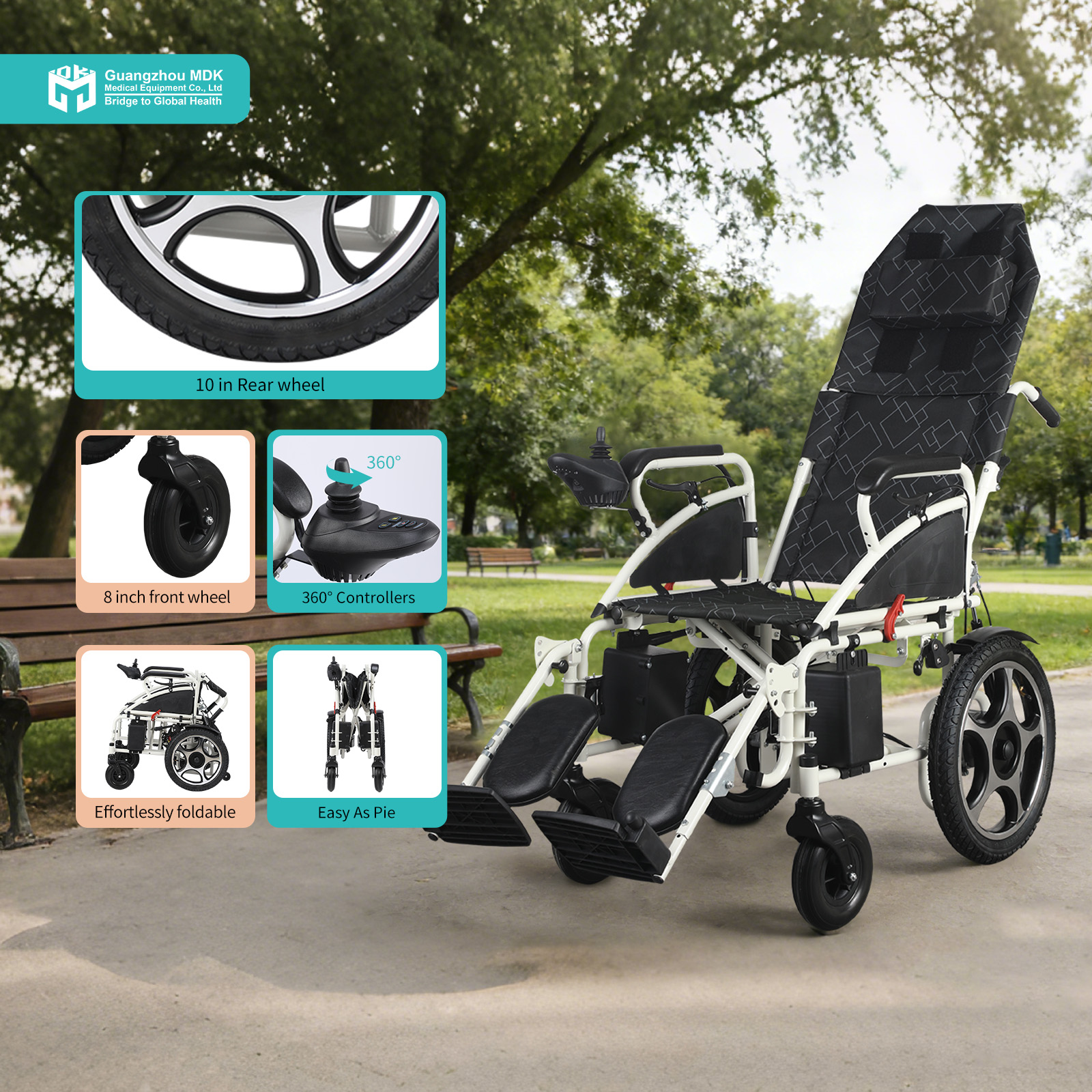

编组 Stable Navigation: Equipped with a 250W motor, 8-inch front wheels, and 10-inch rear wheels for smooth riding across various surfaces.

Product Parameter

Frame Material High-Strength Carbon Steel
Overall Dimensions (L*W*H) 1130 * 630 * 1310 mm
Folded Dimensions 800 * 370 * 770 mm
Seat Dimensions Width: 450mm | Depth: 450mm | Height from ground: 510mm
Backrest Height 830 mm
Armrest Height (from ground) 770 mm
Wheel Size Front: 8-inch | Rear: 10-inch
Motor Power 250W
Battery Type Lead-Acid Battery: 12A (Optional Upgrade to 20A)
Weight Capacity 100 KG
Net Weight / Gross Weight 38.5 KG / 43.5 KG
Package Size 810 * 380 * 800 mm

About the Product

Ergonomic Comfort & Heavy-Duty Carbon Steel

Designed for users who require extended seating support and maximum stability, this electric wheelchair is built upon a rugged carbon steel frame. This high-strength material guarantees exceptional longevity and impact resistance. It features an impressive 830mm high backrest that allows for a comfortable reclining function, providing essential support to the head, neck, and spine. The spacious 450mm * 450mm seat ensures a fatigue-free experience throughout the day.

Intuitive Control & Reliable Power

Operation is made incredibly simple with the advanced 360° smart controller, allowing users to glide smoothly through tight spaces with minimal effort. Underneath, a reliable 250W motor provides consistent driving force. To meet different lifestyle demands, it is equipped with a standard 12A lead-acid battery, while a high-capacity 20A option is available for users requiring extended travel ranges.

Travel-Friendly & Compact Storage

Mobility should never be a burden. This wheelchair features an intelligently designed folding mechanism that allows caregivers or users to collapse the sturdy frame effortlessly. Once folded, it measures just 800 * 370 * 770mm, easily fitting into most car trunks. The optimized 8-inch front and 10-inch rear wheel configuration ensures solid traction and stability without adding unnecessary bulk to your travels.
