Technical Specifications
| Main Configuration | 1.0mm stamped steel surface, DL PP boards, 4-piece PP rails |
|---|---|
| Control System & Features | 2 ABS cranks (over-crank warning), Angle indicators |
| Adjustment Range | Back: 0-80°±5°, Knee: 0-45°±5° (Fixed Height: 500mm) |
| Dimensions & Capacity | Overall Size: 2140×1090×500mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel frame, 5-inch center-control braked wheels |

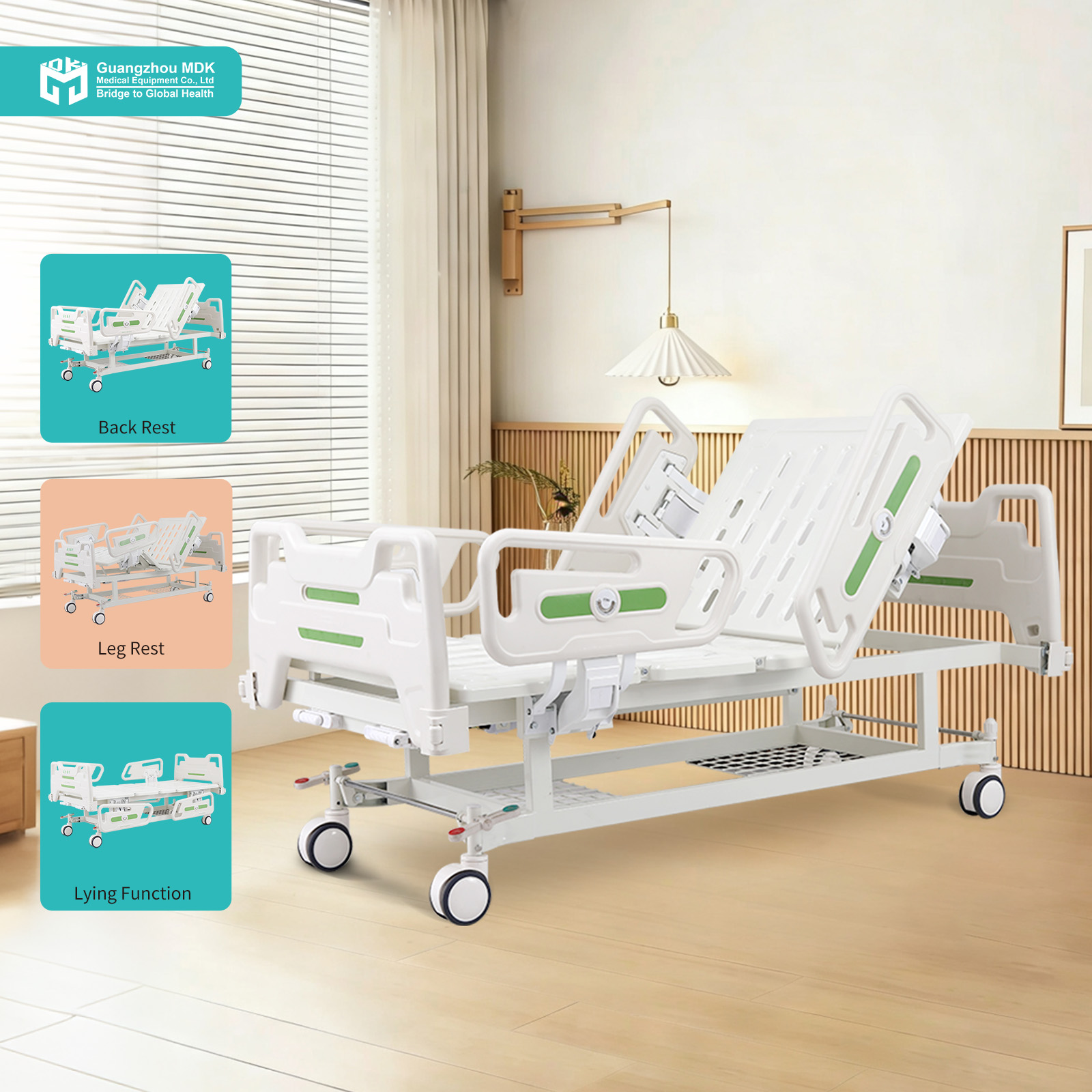

Reliable Clinical Durability
Engineered for standard clinical wards without electricity. This manual bed features a reinforced 30×60×1.2mm steel frame and a 1.0mm one-piece stamped carbon steel surface, safely supporting up to 240kg. It provides a highly durable and cost-effective daily care solution.

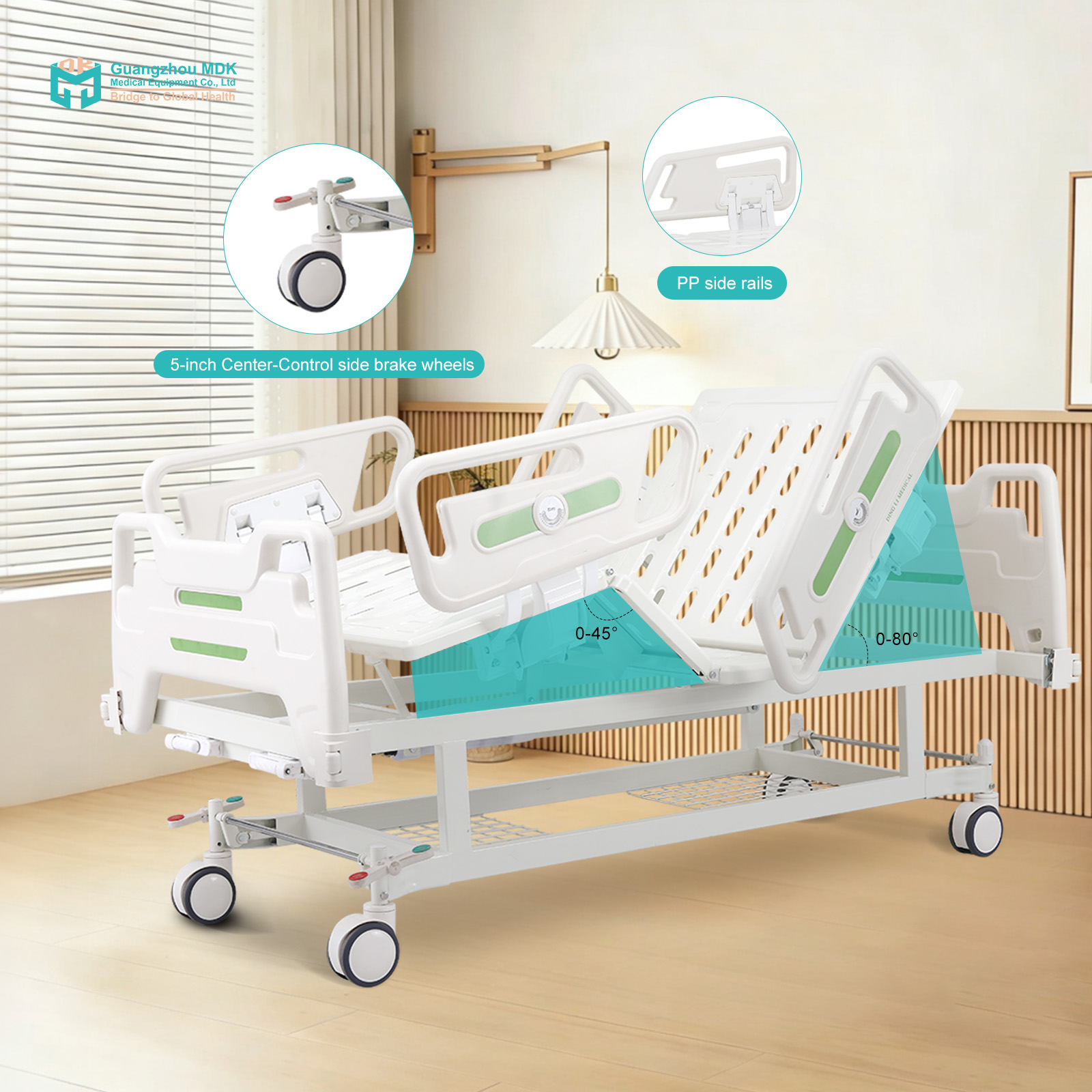

Precise & Safe Adjustments
Two ABS cranks effortlessly adjust the backrest and knee rest, featuring a sound warning to prevent over-cranking. Four drop-down PP side rails with angle indicators and 5-inch center-control braked wheels guarantee absolute patient safety during repositioning.
