Technical Specifications
| Main Configuration | 8.0mm HPL bed surface, Full-body X-ray board, Cassette box (356×432mm) |
|---|---|
| System & Safety Features | Jieshun motor system, Drop-down PP side rails, Patent angle indicators |
| Adjustment Range | Height: 435-765mm, Back: 0-70°±5°, Leg: 0-50°±5°, Trend/Reverse: 12°±2° |
| Dimensions & Capacity | Overall Size: 2190×1090×(435-765)mm, Max Load Capacity: 240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel frame, 5-inch center-control wheels, Anti-collision wheels |

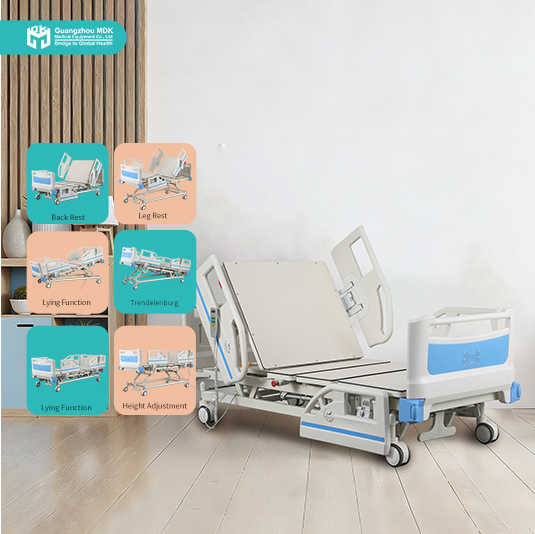

Unparalleled ICU Efficiency with Full-Body X-Ray Integration
Elevate your critical care capabilities with our Advanced 5-Function Electric ICU Hospital Bed. Designed specifically for high-dependency patients, its standout feature is the 8.0mm thick HPL (High-Pressure Laminate) sleeping surface combined with a full-body X-ray board and an integrated cassette box. This advanced configuration allows medical staff to perform essential X-ray imaging directly on the bed, eliminating the risks and physical strain associated with transferring critically ill patients.
Robust Durability & Precision Postural Management
Built to endure the rigorous demands of hospital environments, the bed’s foundation consists of a 30×60×1.2mm high-quality steel pipe frame and a 1.0mm one-piece stamped carbon steel plate. This ensures a formidable maximum load capacity of 240kg. Adjustments are driven by the premium Jieshun motor system, enabling caregivers to smoothly transition the bed’s height (435–765mm), backrest (up to 70°), leg rest (up to 50°), and Trendelenburg/Reverse-Trendelenburg angles (12°).
Intelligent Safety & Seamless Mobility
Patient safety is integrated into every angle of this bed’s design. The four hanging blow-molded PP side rails utilize a drop-down mechanism that retracts freely and locks tightly. They also feature patented angle indicators, allowing nurses to verify back and knee resting angles at a glance. Both the PP head and footboards are equipped with secure locking devices and anti-collision bumper wheels to protect facility infrastructure. Movement is effortless and secure, utilizing 5-inch wear-resistant wheels governed by a highly responsive center-control braking system.
