Technical Specifications
| Main Configuration | One-piece stamped carbon steel surface, blow-molded head/electronic footboard, 4-piece electric PP side rails |
|---|---|
| System & Safety Features | Jieshun motor, Electric/Manual CPR, Battery backup, Emergency stop, Patent angle indicator |
| Adjustment Range | Height: 430-690mm, Backrest: 0-75°±2°, Leg: 0-30°±2°, Trendelenburg/Reverse: 0-12°±2° |
| Dimensions & Capacity | Overall: 2160×1050×430-690mm, Max Load Capacity: ≥240 KG |
| Mobility & Frame Material | 30×60×1.2mm steel pipe frame, 5-inch silent dual wheels with 4 braking devices |

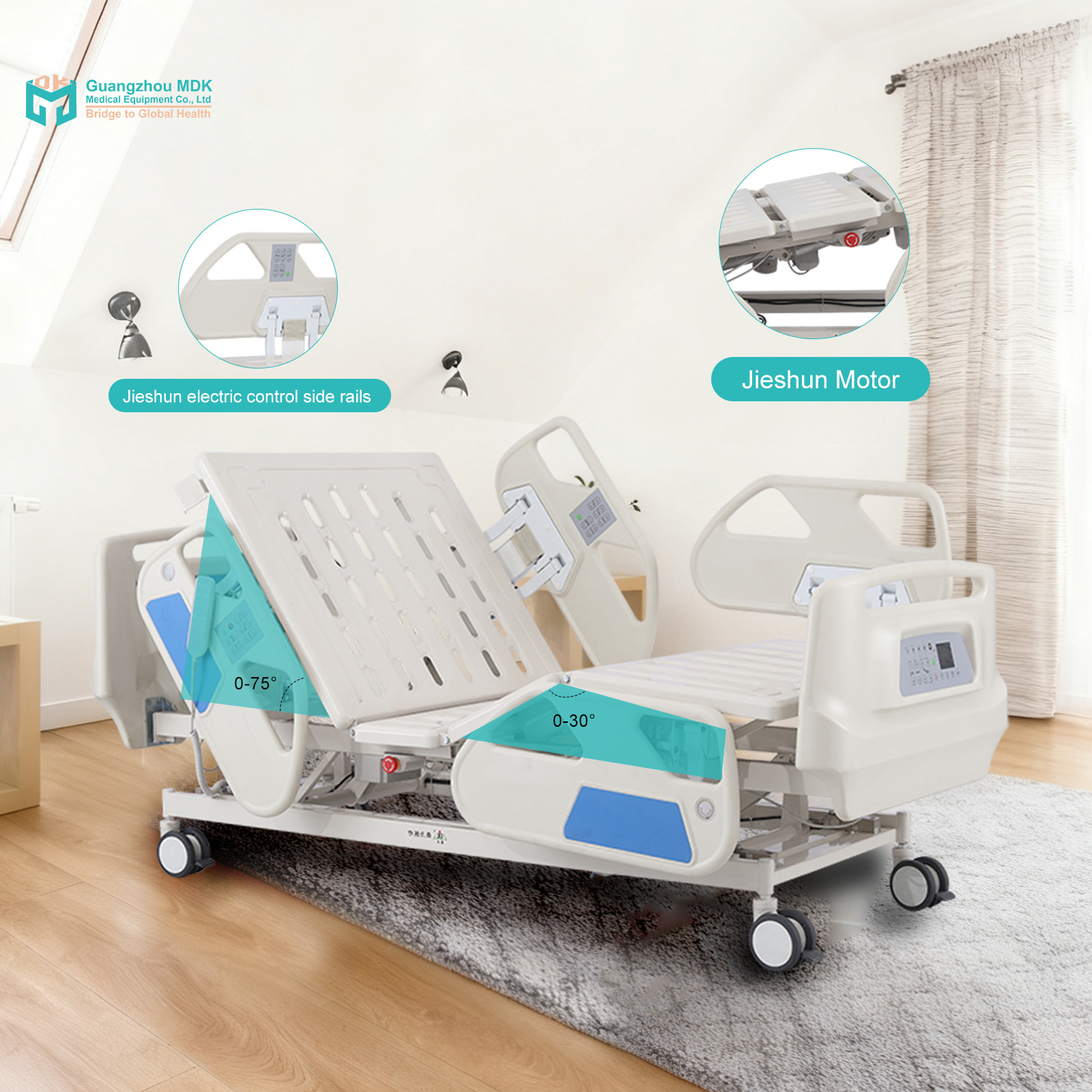

Elevate Critical Care with the Advanced 5-Function Electric ICU Bed
Engineered for the demanding environments of modern hospitals, this highly advanced 5-function electric bed delivers uncompromising stability. Built upon a rugged 30×60×1.2mm high-quality steel pipe frame and a one-piece stamped 1.0mm carbon steel surface, the bed provides robust support and a maximum load capacity of ≥240kg.

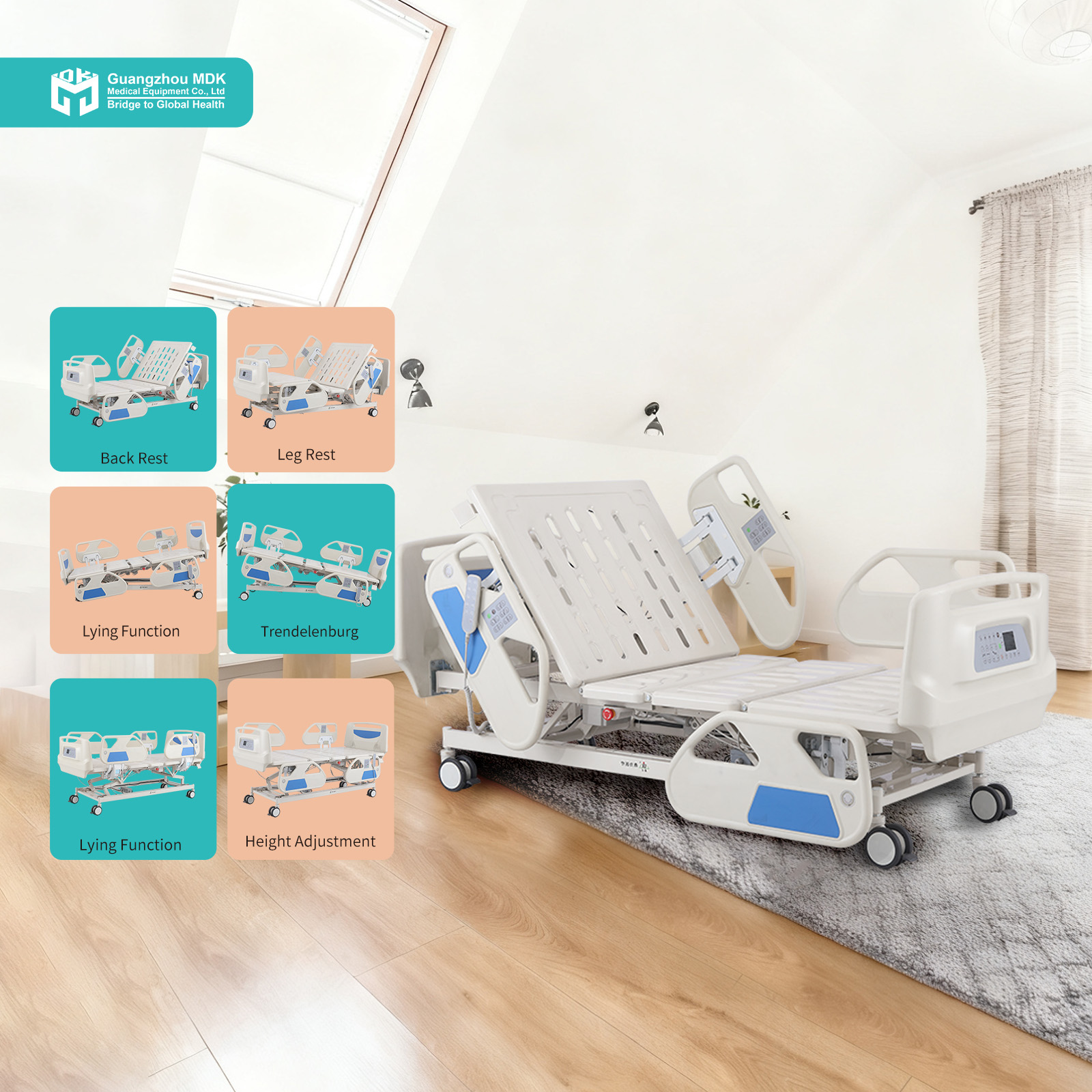

Intuitive Control & Postural Management
Powered by the industry-leading Jieshun motor system, caregivers can effortlessly adjust the bed height (430-690mm), backrest (up to 75°), knee rest (up to 30°), and Trendelenburg/Reverse Trendelenburg positions (12°). The four-piece PP electric side rails not only protect the patient but also feature built-in controls and patented angle indicators for precise postural adjustments. An additional control screen is seamlessly integrated into the blow-molded PP footboard.
Emergency Readiness & Superior Mobility
Patient safety is paramount. The bed incorporates a comprehensive dual CPR system (electric CPR + manual back CPR) and an emergency stop function to instantly flatten the bed during cardiac events. A reliable battery backup ensures all functions remain operational during power outages. For secure transport, it utilizes premium 5-inch silent dual wheels equipped with four independent braking devices, ensuring smooth rotation and rock-solid stationary positioning.
